Description

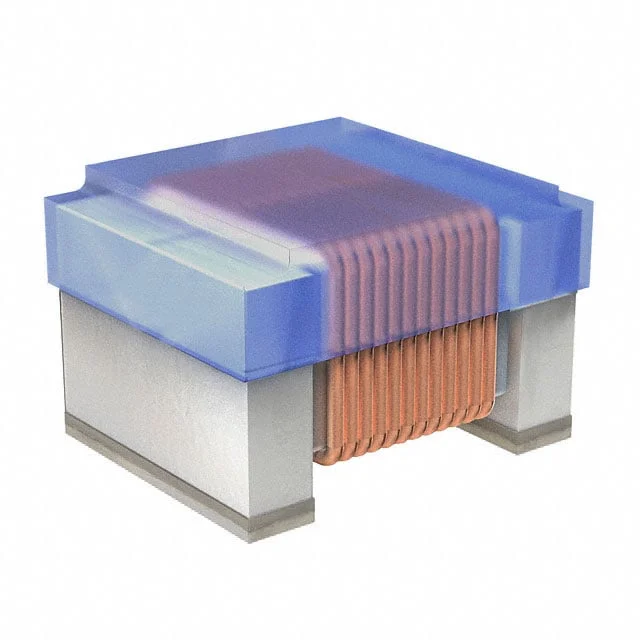

FIXED IND 82NH 100MA 1.25 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744765182A.
744765182A has an inductance value of 82 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744765182A is rated for 100 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744765182A lists a DC resistance of 1.25Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744765182A uses a package or case of 0402 (1005 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744765182A to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 82 nH |
| Tolerance | ±5% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 1.25Ohm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.039" L x 0.022" W (1.00mm x 0.55mm) |
| Case / Size | 0402 (1005 Metric) |
| Package / Case | 0402 (1005 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 82NH 100MA 1.25 OHM |
| Series | WE-KI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 150MHz |
| Self Resonant Frequency | 1.5GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.024" (0.60mm) |
