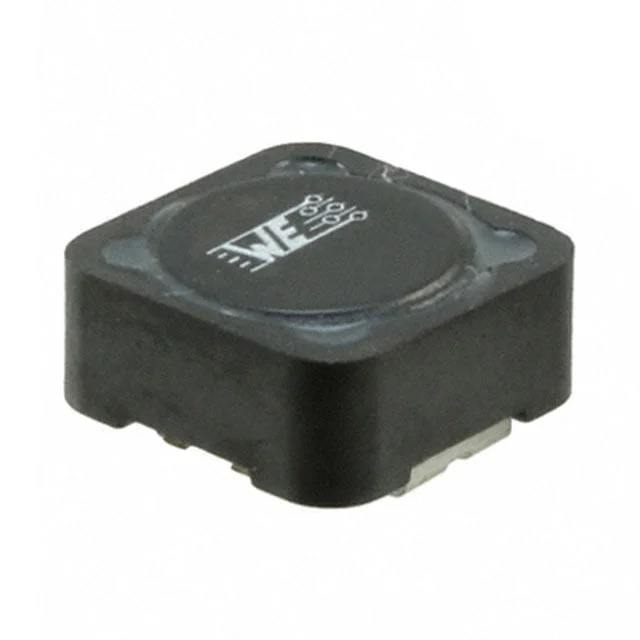

FIXED IND 6.1UH 7.6A 18 MOHM SMD
| Inductance | 6.1 µH |
| Tolerance | -20%, +40% |
| Current Rating | 7.6 A |
| DC Resistance (DCR) | 18mOhm Max |
| saturationCurrent | 8.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 6.1UH 7.6A 18 MOHM SMD |
| Series | WE-PD |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Manganese Zinc Ferrite (MnZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 25MHz |
| ratings | AEC-Q200 |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
| features | - |
