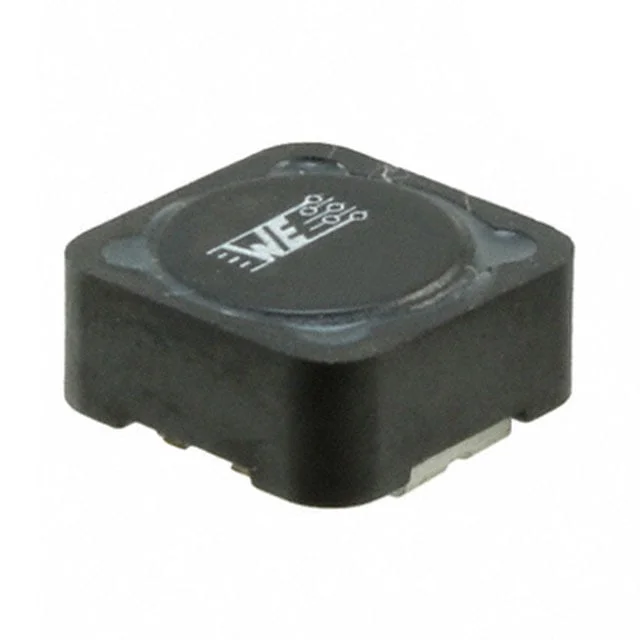

FIXED IND 22UH 6.2A 33 MOHM SMD
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 6.2 A |
| DC Resistance (DCR) | 33mOhm Max |
| saturationCurrent | 7.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 22UH 6.2A 33 MOHM SMD |
| Series | WE-PD |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Manganese Zinc Ferrite (MnZn) |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 11.5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.394" (10.00mm) |
| features | - |
