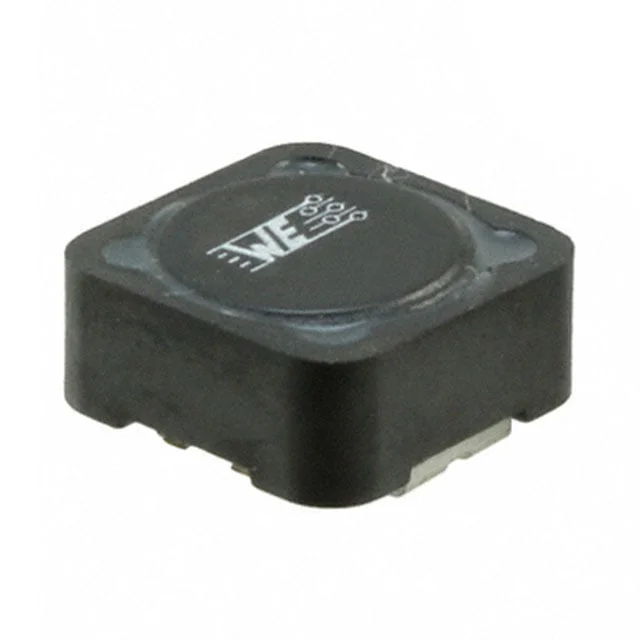

FIXED IND 4.7UH 8.5A 10 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 8.5 A |
| DC Resistance (DCR) | 10mOhm Max |
| saturationCurrent | 15.5A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7UH 8.5A 10 MOHM SMD |
| Series | WE-PD |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Manganese Zinc Ferrite (MnZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 28.8MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
| features | - |
