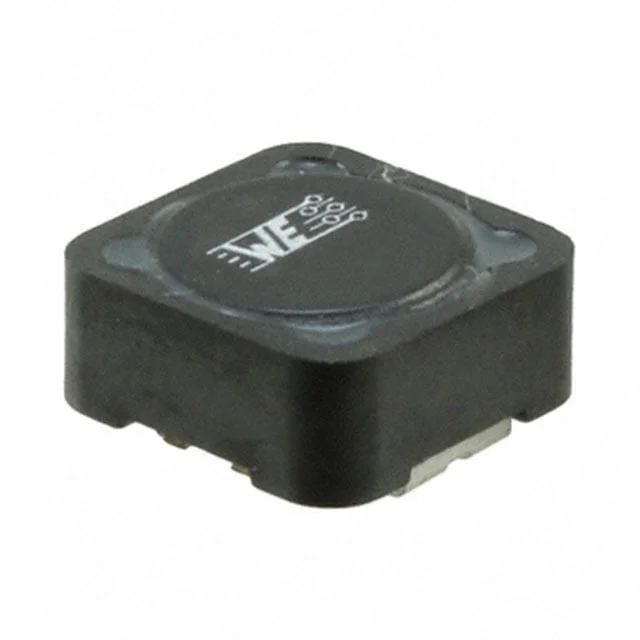

FIXED IND 1UH 13A 6 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 13 A |
| DC Resistance (DCR) | 6mOhm Max |
| saturationCurrent | 25A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1UH 13A 6 MOHM SMD |
| Series | WE-PD |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Manganese Zinc Ferrite (MnZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 120MHz |
| ratings | AEC-Q200 |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.394" (10.00mm) |
| features | - |
