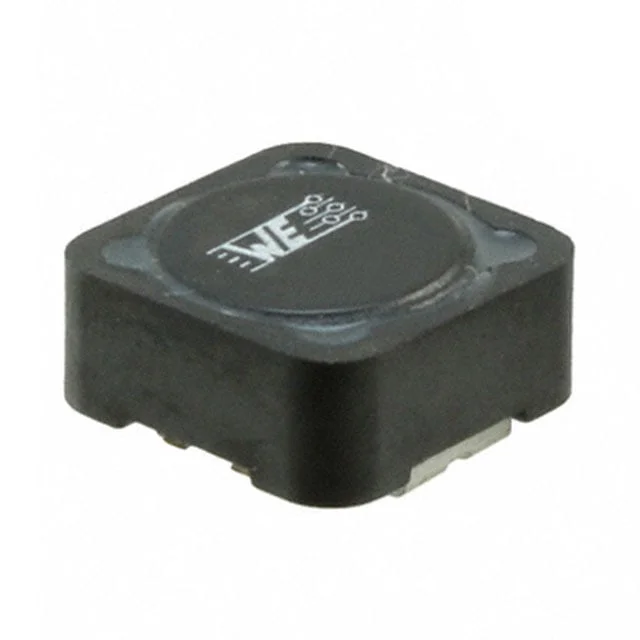

FIXED IND 2.2UH 11.5A 6 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447709002.
7447709002 has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447709002 is rated for 11.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447709002 lists a DC resistance of 6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447709002 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447709002 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 11.5 A |
| DC Resistance (DCR) | 6mOhm Max |
| Saturation Current | 20A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2UH 11.5A 6 MOHM SMD |
| Series | WE-PD |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Manganese Zinc Ferrite (MnZn) |
| Shielding | Shielded |
| Self Resonant Frequency | 65MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.394" (10.00mm) |
