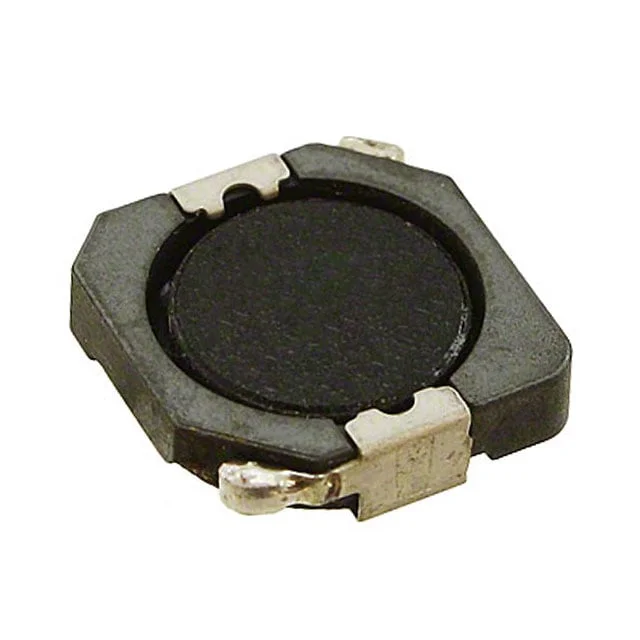

Description
FIXED IND 82UH 950MA 419 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447713820.
7447713820 has an inductance value of 82 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447713820 is rated for 950 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447713820 lists a DC resistance of 419mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447713820 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447713820 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 82 µH |
| Tolerance | ±20% |
| Current Rating | 950 mA |
| DC Resistance (DCR) | 419mOhm Max |
| Saturation Current | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 82UH 950MA 419 MOHM |
| Series | WE-PD Performance |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 8.8MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
