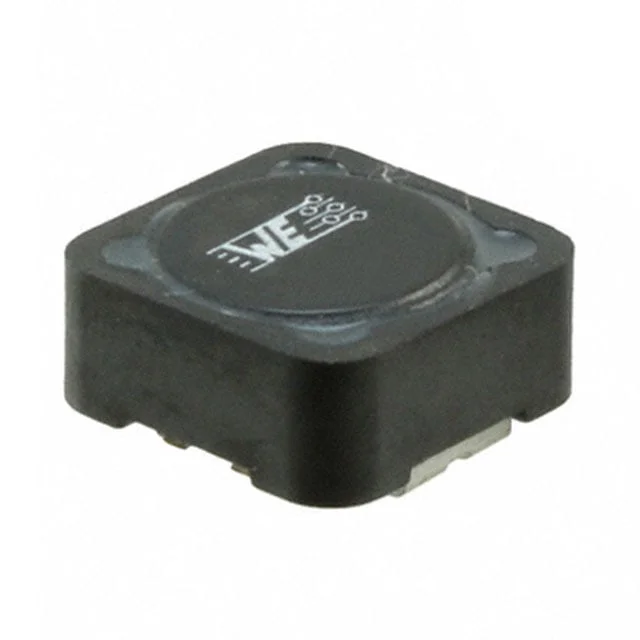

FIXED IND 1.8UH 7.6A 9.5 MOHM
| Inductance | 1.8 µH |
| Tolerance | ±30% |
| Current Rating | 7.6 A |
| DC Resistance (DCR) | 9.5mOhm Max |
| saturationCurrent | 10.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.8UH 7.6A 9.5 MOHM |
| Series | WE-PD |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Manganese Zinc Ferrite (MnZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 76MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
