Description

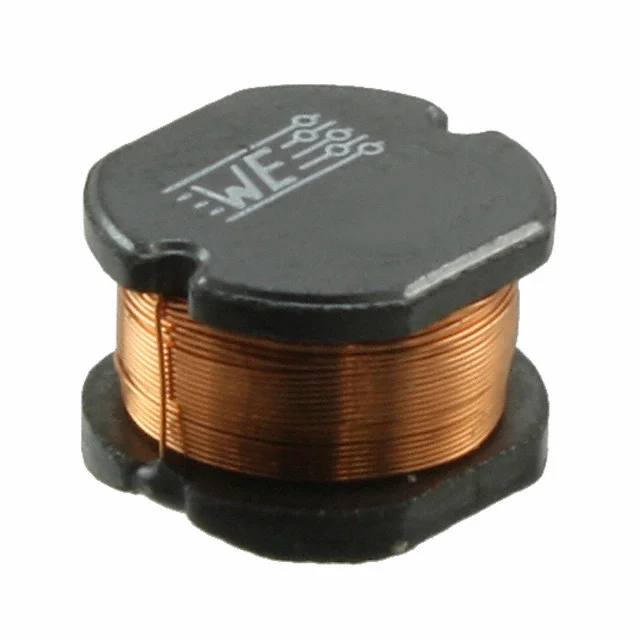

FIXED IND 18MH 80MA 72 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744775318.
744775318 has an inductance value of 18 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744775318 is rated for 80 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744775318 lists a DC resistance of 72Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744775318 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744775318 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 18 mH |
| Tolerance | ±10% |
| Current Rating | 80 mA |
| DC Resistance (DCR) | 72Ohm Max |
| Saturation Current | 50mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.276" W (8.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 18MH 80MA 72 OHM SMD |
| Series | WE-ASI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 400kHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.217" (5.50mm) |
