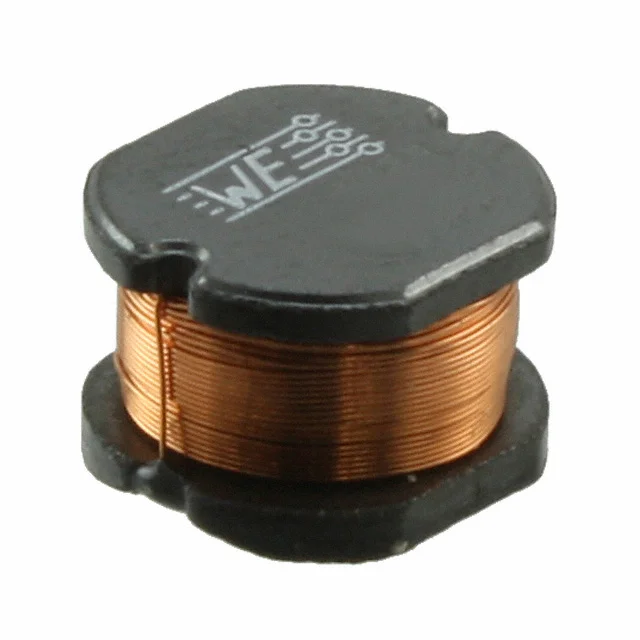

FIXED IND 4.7MH 200MA 13.8 OHM
| Inductance | 4.7 mH |
| Tolerance | ±10% |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 13.8Ohm Max |
| saturationCurrent | 100mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.276" W (8.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7MH 200MA 13.8 OHM |
| Series | WE-ASI |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 700kHz |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
