Description

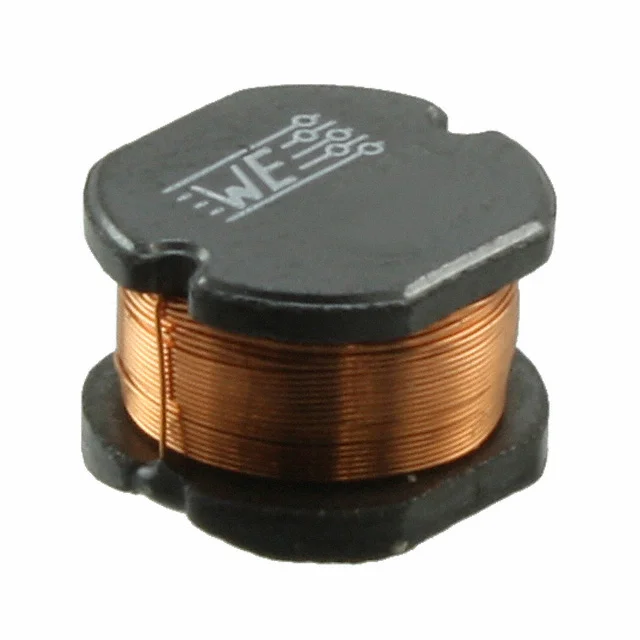

FIXED IND 6MH 180MA 18 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744775360.
744775360 has an inductance value of 6 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744775360 is rated for 180 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744775360 lists a DC resistance of 18Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744775360 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744775360 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6 mH |
| Tolerance | ±10% |
| Current Rating | 180 mA |
| DC Resistance (DCR) | 18Ohm Max |
| Saturation Current | 90mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.276" W (8.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 6MH 180MA 18 OHM SMD |
| Series | WE-ASI |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 600kHz |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.217" (5.50mm) |
