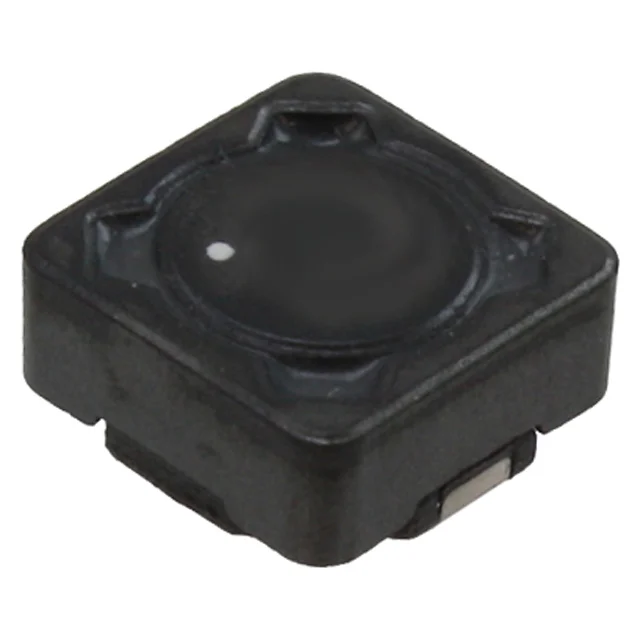

Description
FIXED IND 2.2UH 4.02A 23 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447789002.
7447789002 has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447789002 is rated for 4.02 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447789002 lists a DC resistance of 23mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447789002 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447789002 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 4.02 A |
| DC Resistance (DCR) | 23mOhm Max |
| Saturation Current | 4.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2UH 4.02A 23 MOHM |
| Series | WE-PD Robust |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 115MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.138" (3.50mm) |
