Description

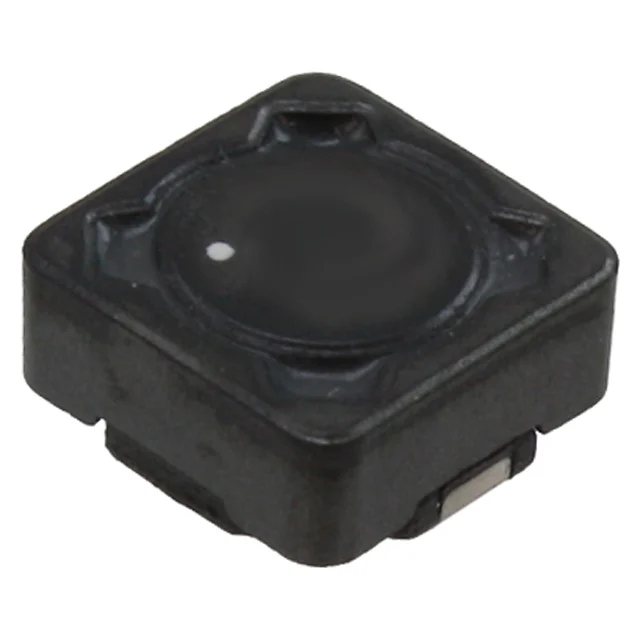

FIXED IND 27UH 1.27A 210 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447789127.
7447789127 has an inductance value of 27 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447789127 is rated for 1.27 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447789127 lists a DC resistance of 210mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447789127 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447789127 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 27 µH |
| Tolerance | ±20% |
| Current Rating | 1.27 A |
| DC Resistance (DCR) | 210mOhm Max |
| Saturation Current | 1.35A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 27UH 1.27A 210 MOHM |
| Series | WE-PD Robust |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 18MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.138" (3.50mm) |
