Description

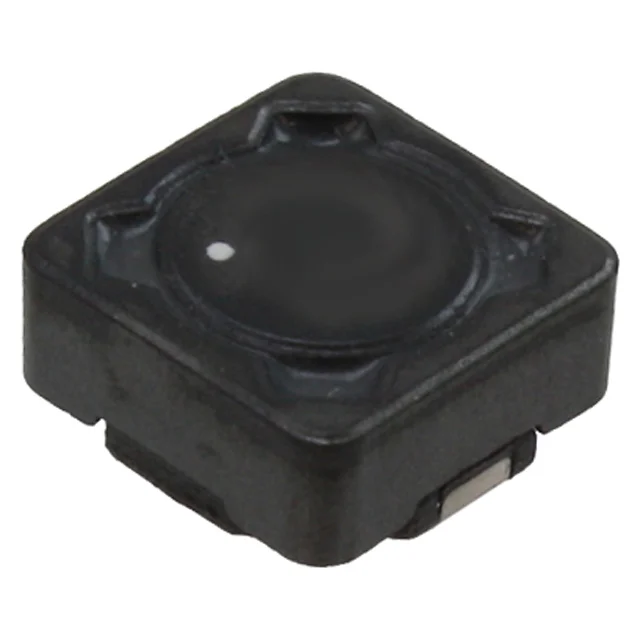

FIXED IND 150UH 560MA 1.27 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447789215.
7447789215 has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447789215 is rated for 560 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447789215 lists a DC resistance of 1.27Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447789215 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447789215 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating | 560 mA |
| DC Resistance (DCR) | 1.27Ohm Max |
| Saturation Current | 530mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 150UH 560MA 1.27 OHM |
| Series | WE-PD Robust |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 7.2MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.138" (3.50mm) |
