Description

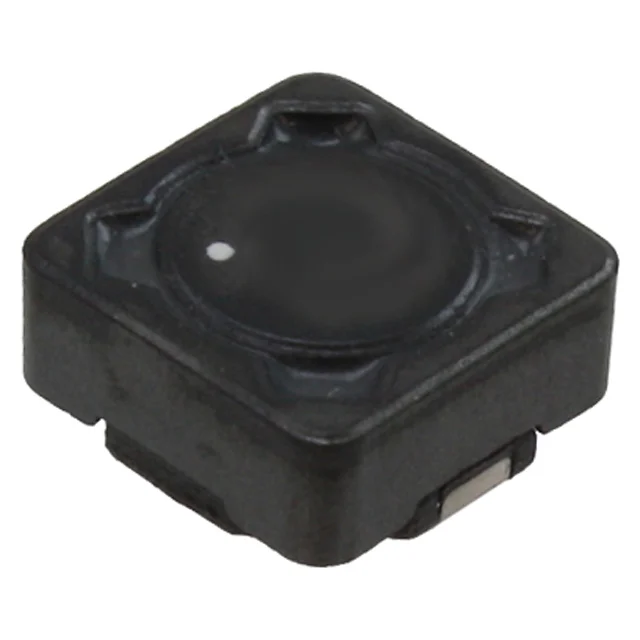

FIXED IND 330UH 320MA 2.62 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447789233.
7447789233 has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447789233 is rated for 320 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447789233 lists a DC resistance of 2.62Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447789233 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447789233 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 320 mA |
| DC Resistance (DCR) | 2.62Ohm Max |
| Saturation Current | 350mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 330UH 320MA 2.62 OHM |
| Series | WE-PD Robust |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 4.8MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.138" (3.50mm) |
