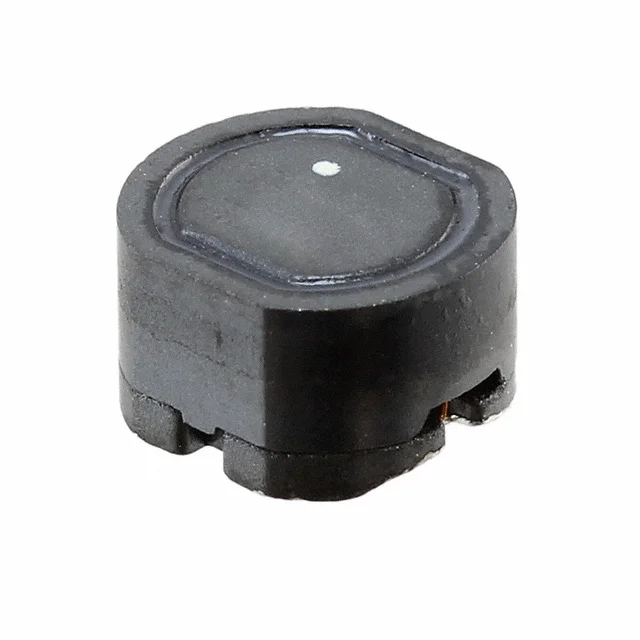

Description
FIXED IND 1.2UH 4.85A 13 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744787012.
744787012 has an inductance value of 1.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744787012 is rated for 4.85 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744787012 lists a DC resistance of 13mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744787012 uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744787012 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.2 µH |
| Tolerance | ±30% |
| Current Rating | 4.85 A |
| DC Resistance (DCR) | 13mOhm Max |
| Saturation Current | 6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.2UH 4.85A 13 MOHM |
| Series | WE-PD2SR |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 110MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Features | - |
