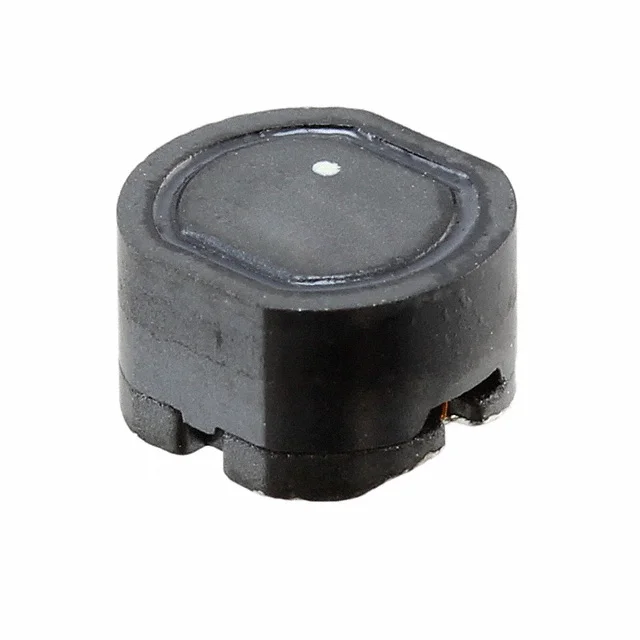

FIXED IND 8.2UH 2.7A 39 MOHM SMD
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.7 A |
| DC Resistance (DCR) | 39mOhm Max |
| saturationCurrent | 2.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 8.2UH 2.7A 39 MOHM SMD |
| Series | WE-PD2SR |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 28MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.177" (4.50mm) |
| features | - |
