Description

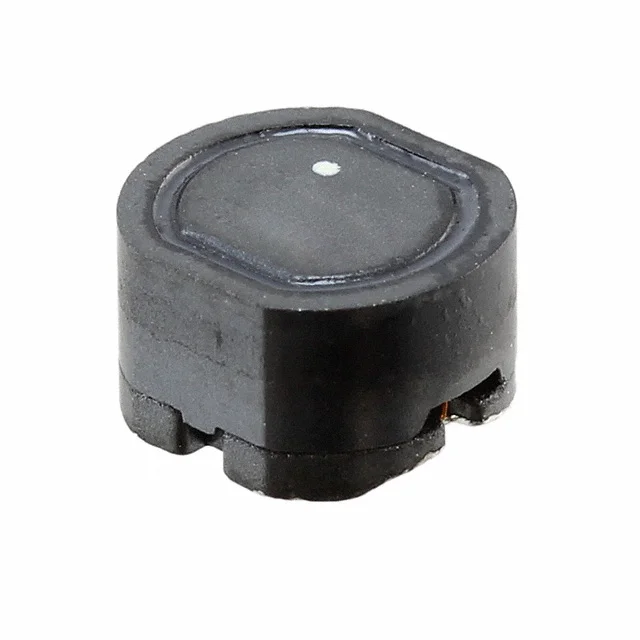

FIXED IND 180UH 680MA 794 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744787181.
744787181 has an inductance value of 180 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744787181 is rated for 680 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744787181 lists a DC resistance of 794mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744787181 uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744787181 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 180 µH |
| Tolerance | ±20% |
| Current Rating | 680 mA |
| DC Resistance (DCR) | 794mOhm Max |
| Saturation Current | 620mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Würth Elektronik |
| Description | FIXED IND 180UH 680MA 794 MOHM |
| Series | WE-PD2SR |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 3.8MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.177" (4.50mm) |
| Features | - |
