Description

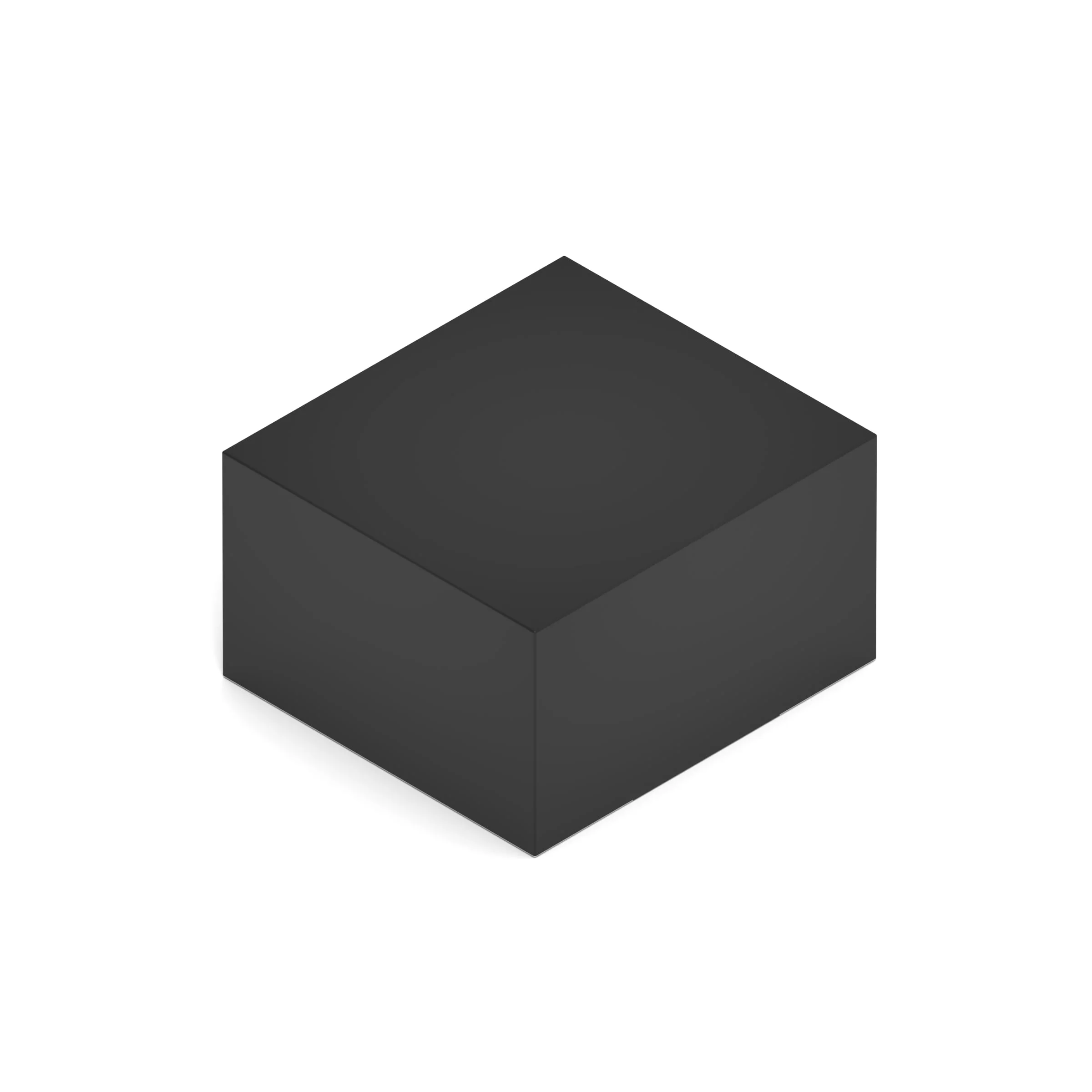

FIXED IND 470NH 9.3A 13 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74479325207147.
74479325207147 has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74479325207147 is rated for 9.3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74479325207147 lists a DC resistance of 13mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74479325207147 uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74479325207147 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 9.3 A |
| DC Resistance (DCR) | 13mOhm Max |
| Saturation Current | 7.9A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 470NH 9.3A 13 MOHM SMD |
| Series | WE-PMFI |
| Product Status | Active |
| Type / Construction | Molded |
| Shielding | Shielded |
| Self Resonant Frequency | 97MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.047" (1.20mm) |
