Description

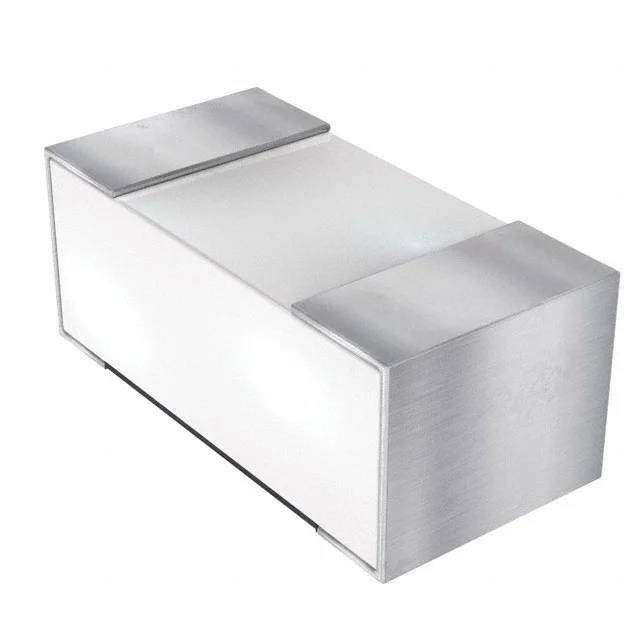

FIXED IND 2NH 200MA 700 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744900020.
744900020 has an inductance value of 2 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744900020 is rated for 200 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744900020 lists a DC resistance of 700mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744900020 uses a package or case of 0201 (0603 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744900020 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2 nH |
| Tolerance | ±0.2nH |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 700mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Case / Size | 0201 (0603 Metric) |
| Package / Case | 0201 (0603 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2NH 200MA 700 MOHM SMD |
| Series | WE-TCI |
| Product Status | Active |
| Type / Construction | Thin Film |
| Shielding | Unshielded |
| Q @ Frequency | 8 @ 500MHz |
| Self Resonant Frequency | 8GHz |
| Inductance Test Frequency | 500 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0201 (0603 Metric) |
| Height - Seated (Max) | 0.011" (0.28mm) |
