Description

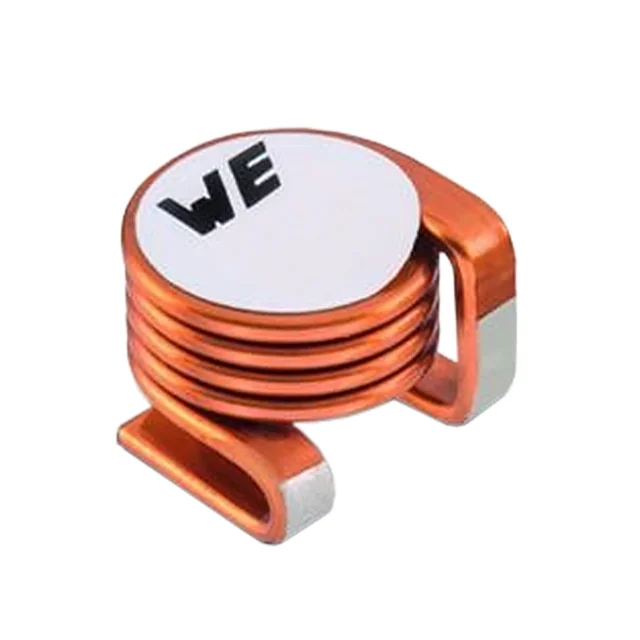

FIXED IND 66NH 32A 0.99 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7449152066.
7449152066 has an inductance value of 66 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7449152066 is rated for 32 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7449152066 lists a DC resistance of 0.99mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7449152066 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7449152066 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 66 nH |
| Tolerance | ±20% |
| Current Rating | 32 A |
| DC Resistance (DCR) | 0.99mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.453" W (12.00mm x 11.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 66NH 32A 0.99 MOHM SMD |
| Series | WE-ACHC |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Air |
| Shielding | Unshielded |
| Q @ Frequency | 245 @ 100MHz |
| Self Resonant Frequency | 457MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1212 |
| Height - Seated (Max) | 0.346" (8.80mm) |
