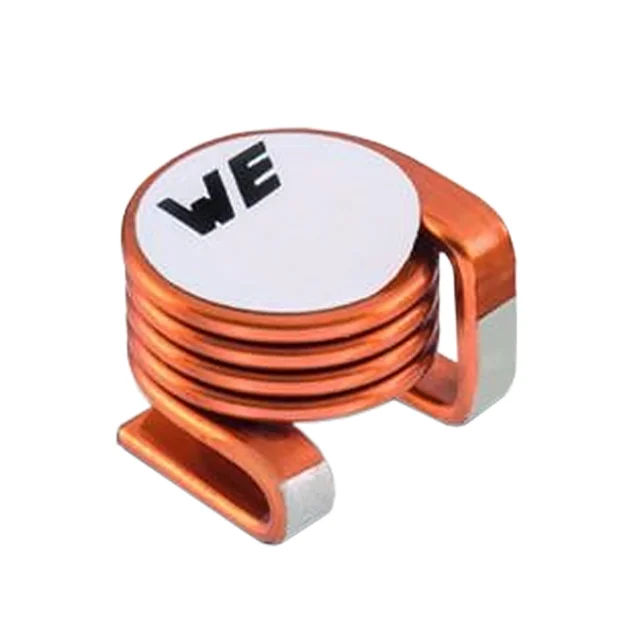

FIXED IND 90NH 30A 1.21 MOHM SMD
| Inductance | 90 nH |
| Tolerance | ±20% |
| Current Rating | 30 A |
| DC Resistance (DCR) | 1.21mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.453" W (12.00mm x 11.50mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 90NH 30A 1.21 MOHM SMD |
| Series | WE-ACHC |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 226 @ 100MHz |
| selfResonantFreq | 359MHz |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1212 |
| heightMax | 0.409" (10.40mm) |
| features | - |
