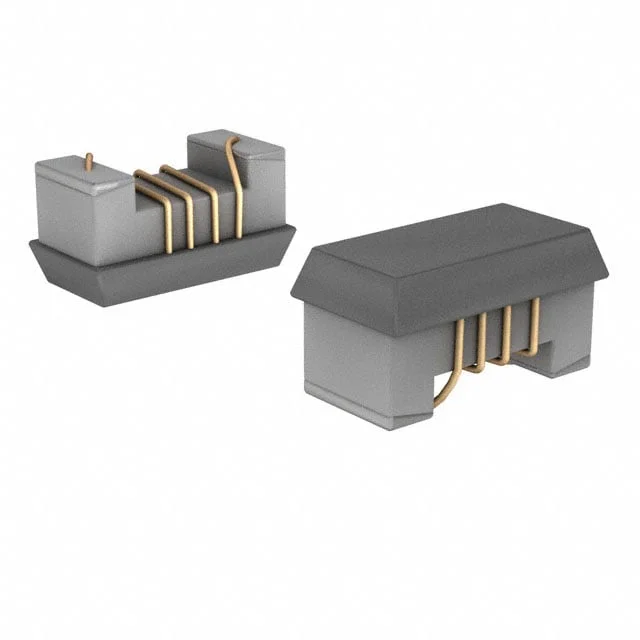

Description
FIXED IND 33NH 490MA 330 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744916133.
744916133 has an inductance value of 33 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744916133 is rated for 490 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744916133 lists a DC resistance of 330mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744916133 uses a package or case of 0402 (1006 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744916133 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 nH |
| Tolerance | ±2% |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 330mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Case / Size | 0402 (1006 Metric) |
| Package / Case | 0402 (1006 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 33NH 490MA 330 MOHM |
| Series | WE-KI HC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 28 @ 250MHz |
| Self Resonant Frequency | 2.8GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 250 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0402 (1006 Metric) |
| Height - Seated (Max) | 0.024" (0.60mm) |
