Description
FIXED IND 100NH 470MA 540 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744917210.
744917210 has an inductance value of 100 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744917210 is rated for 470 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744917210 lists a DC resistance of 540mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744917210 uses a package or case of 0603 (1608 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744917210 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 100 nH |
| Tolerance | ±2% |
| Current Rating | 470 mA |
| DC Resistance (DCR) | 540mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.063" L x 0.039" W (1.60mm x 1.00mm) |
| Case / Size | 0603 (1608 Metric) |
| Package / Case | 0603 (1608 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 100NH 470MA 540 MOHM |
| Series | WE-KI HC |
| Product Status | Active |

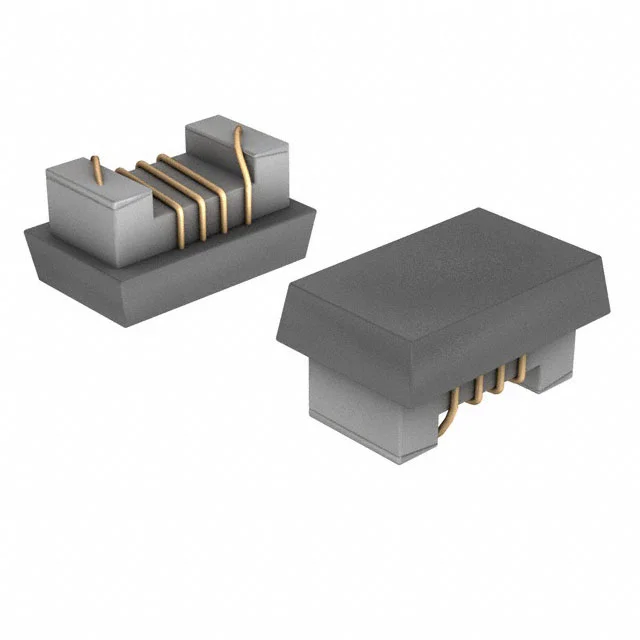

| Type / Construction | Drum Core, Wirewound |
| Core Material | Ceramic |
| Shielding | Unshielded |
| Q @ Frequency | 35 @ 250MHz |
| Self Resonant Frequency | 1.7GHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 150 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 0603 (1608 Metric) |
| Height - Seated (Max) | 0.039" (1.00mm) |
