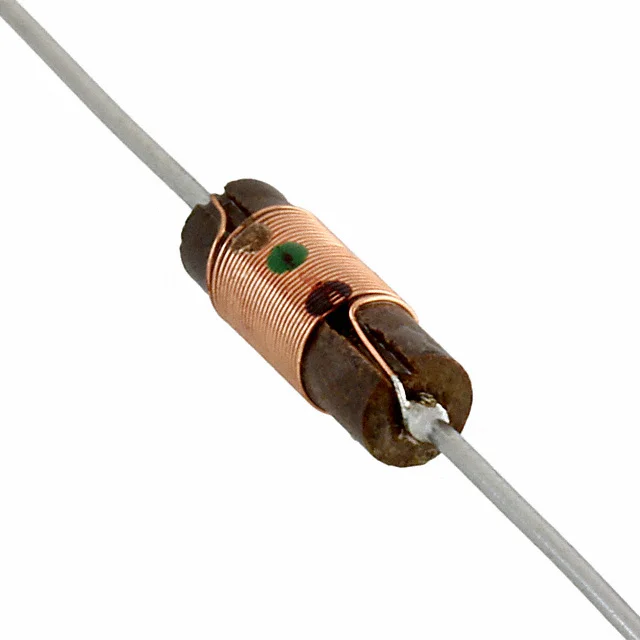

Description
FIXED IND 1.5UH 900MA 250 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74F156AP-RC.
74F156AP-RC has an inductance value of 1.5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74F156AP-RC is rated for 900 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74F156AP-RC lists a DC resistance of 250mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74F156AP-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74F156AP-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 250mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.200" Dia x 0.500" L (5.08mm x 12.70mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.5UH 900MA 250 MOHM |
| Series | 74F |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Phenolic |
| Shielding | Unshielded |
| Q @ Frequency | 45 @ 7.96MHz |
| Self Resonant Frequency | 160MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Through Hole |
