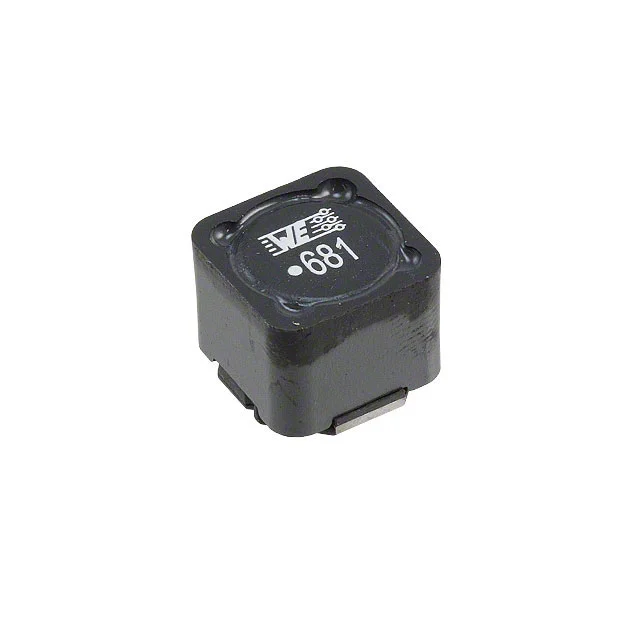

FIXED IND 680UH 800MA 1.15 OHM
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 1.15Ohm Max |
| saturationCurrent | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 680UH 800MA 1.15 OHM |
| Series | WE-PD HV |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 1.5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.413" (10.50mm) |
| features | - |
