Description
FIXED IND 1.5MH 380MA 3 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 768772152.
768772152 has an inductance value of 1.5 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
768772152 is rated for 380 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
768772152 lists a DC resistance of 3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.

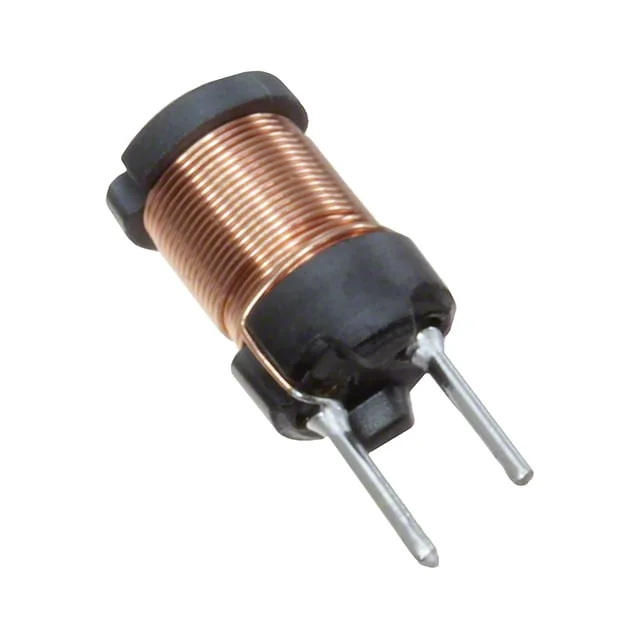

768772152 uses a package or case of Radial, Vertical Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 768772152 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.5 mH |
| Tolerance | ±10% |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 3Ohm Max |
| Saturation Current | 400mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" Dia (7.80mm) |
| Case / Size | Radial, Vertical Cylinder (Open) |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.5MH 380MA 3 OHM TH |
| Series | WE-TI HV |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 1.5MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.394" (10.00mm) |
