Description

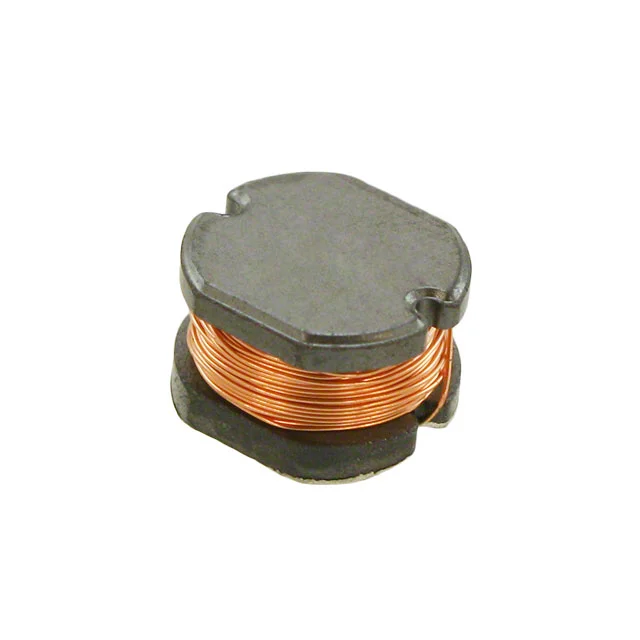

FIXED IND 680UH 380MA 2.4 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 768775268.
768775268 has an inductance value of 680 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
768775268 is rated for 380 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
768775268 lists a DC resistance of 2.4Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
768775268 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 768775268 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 2.4Ohm Max |
| Saturation Current | 380mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 680UH 380MA 2.4 OHM |
| Series | WE-PD2 HV |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 2.7MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.217" (5.50mm) |
