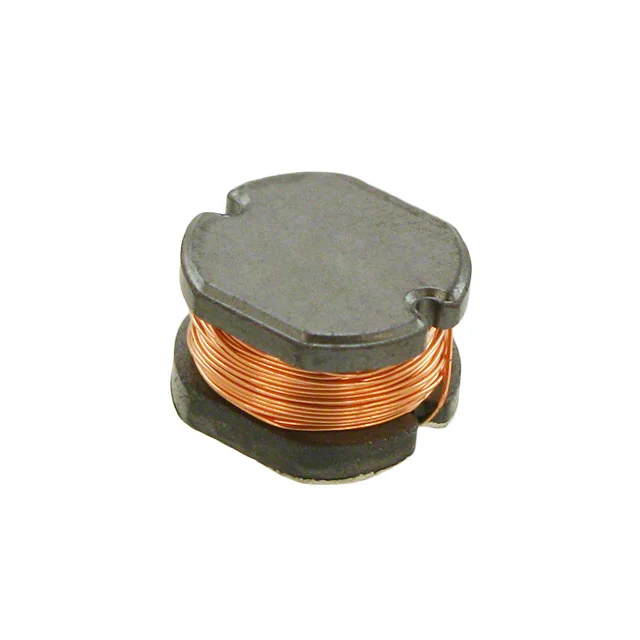

FIXED IND 1.2MH 280MA 4.5 OHM
| Inductance | 1.2 mH |
| Tolerance | ±10% |
| Current Rating | 280 mA |
| DC Resistance (DCR) | 4.5Ohm Max |
| saturationCurrent | 280mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.307" L x 0.276" W (7.80mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.2MH 280MA 4.5 OHM |
| Series | WE-PD2 HV |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 2.1MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.217" (5.50mm) |
| features | - |
