Description

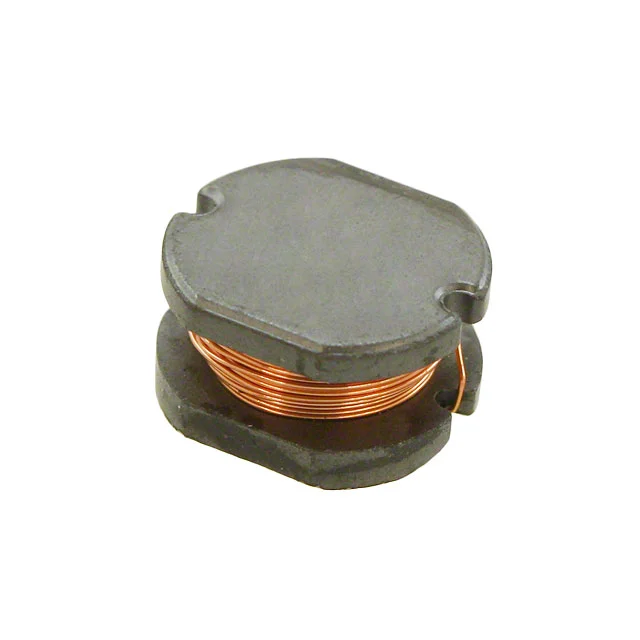

FIXED IND 1MH 380MA 2.6 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 76877630.
76877630 has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
76877630 is rated for 380 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
76877630 lists a DC resistance of 2.6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
76877630 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 76877630 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating | 380 mA |
| DC Resistance (DCR) | 2.6Ohm Max |
| Saturation Current | 380mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.354" W (10.00mm x 9.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1MH 380MA 2.6 OHM SMD |
| Series | WE-PD2 HV |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 1.9MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.232" (5.90mm) |
