Description

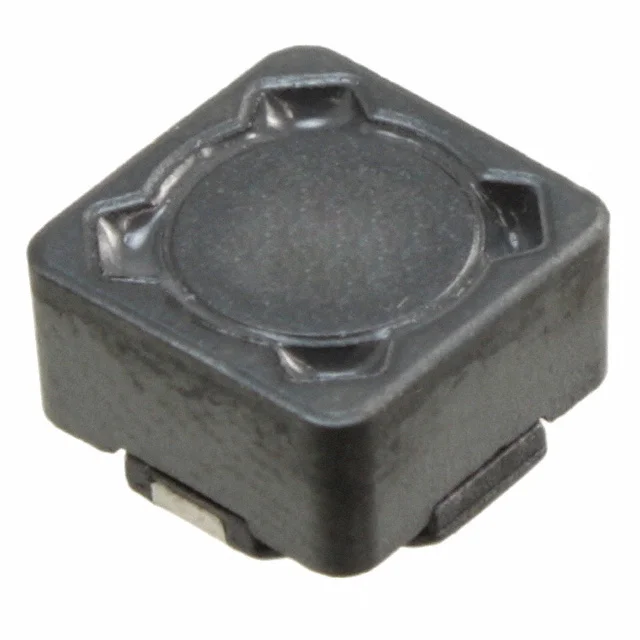

FIXED IND 1MH 240MA 6 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7687779102.
7687779102 has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7687779102 is rated for 240 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7687779102 lists a DC resistance of 6Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7687779102 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7687779102 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±20% |
| Current Rating | 240 mA |
| DC Resistance (DCR) | 6Ohm Max |
| Saturation Current | 250mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1MH 240MA 6 OHM SMD |
| Series | WE-PD HV |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 2.3MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.154" (3.90mm) |
