Description

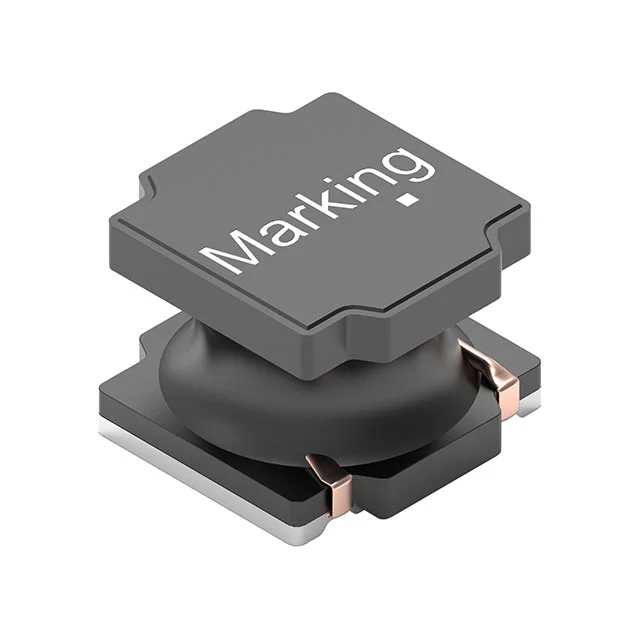

FIXED IND 3.3UH 4.1A 28 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 78404064033.
78404064033 has an inductance value of 3.3 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
78404064033 is rated for 4.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
78404064033 lists a DC resistance of 28mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
78404064033 uses a package or case of 2424 (6060 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 78404064033 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 4.1 A |
| DC Resistance (DCR) | 28mOhm Max |
| Saturation Current | 6.5A |
| Operating Temperature | -50°C ~ 150°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Package / Case | 2424 (6060 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.3UH 4.1A 28 MOHM SMD |
| Series | WE-LQSA |
| Product Status | Active |
| Type / Construction | - |
| Core Material | - |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 42MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 2424 |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Features | - |
