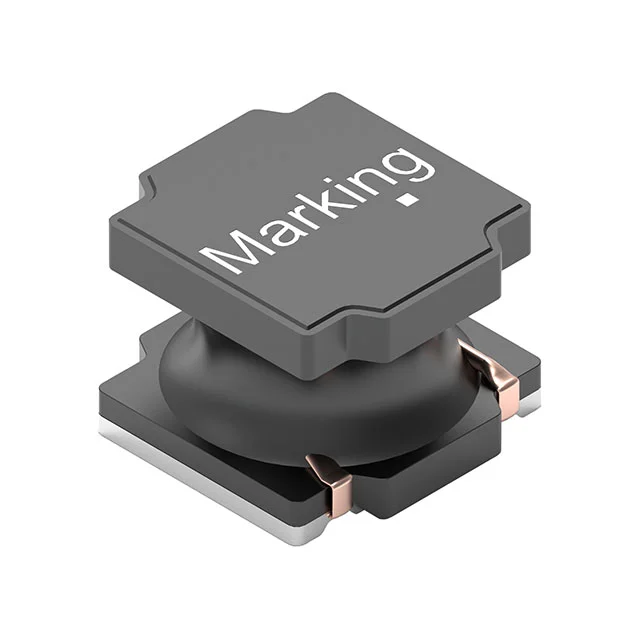

FIXED IND 4.7UH 3.7A 34 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 3.7 A |
| DC Resistance (DCR) | 34mOhm Max |
| saturationCurrent | 5.5A |
| Operating Temperature | -50°C ~ 150°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7UH 3.7A 34 MOHM SMD |
| Series | WE-LQSA |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 36MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 2424 |
| heightMax | 0.181" (4.60mm) |
| features | - |
