Description

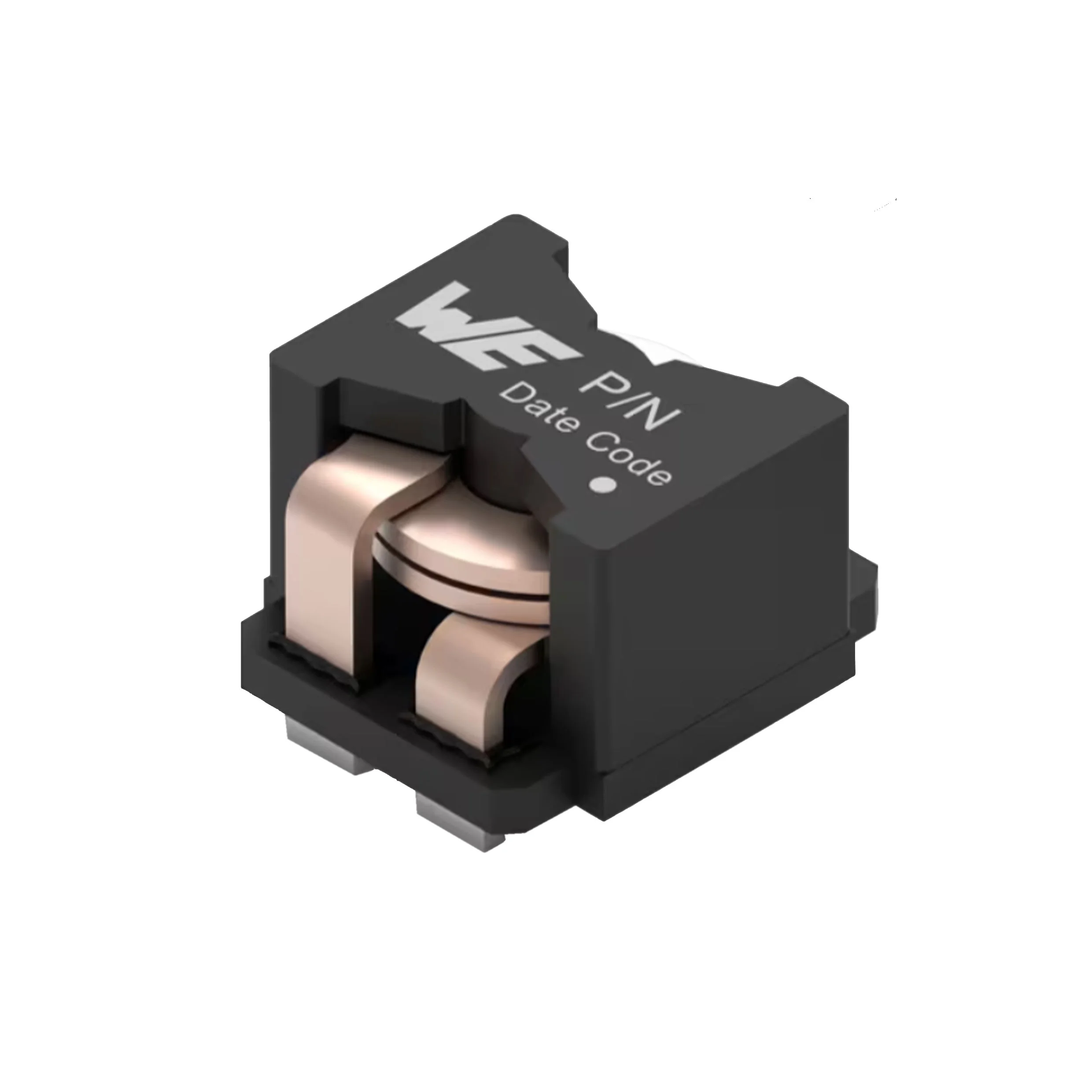

FIXED IND 2.2UH 75A 0.39 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7843763521022.
7843763521022 has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7843763521022 is rated for 75 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7843763521022 lists a DC resistance of 0.39mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7843763521022 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7843763521022 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 75 A |
| DC Resistance (DCR) | 0.39mOhm Max |
| Saturation Current | 130A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 1.575" L x 1.417" W (40.00mm x 36.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2UH 75A 0.39 MOHM TH |
| Series | WE-HCFAT |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 32MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.945" (24.00mm) |
