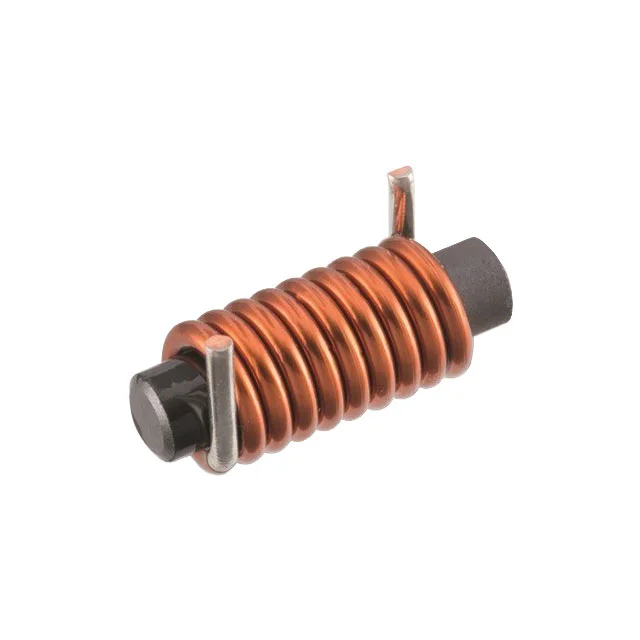

Description
FIXED IND 6UH 10A 6.5 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7847131060.
7847131060 has an inductance value of 6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7847131060 is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7847131060 lists a DC resistance of 6.5mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7847131060 uses a package or case of Radial, Horizontal Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7847131060 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6 µH |
| Tolerance | ±25% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 6.5mOhm |
| Saturation Current | 19A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.339" Dia x 1.012" L (8.60mm x 25.70mm) |
| Case / Size | Radial, Horizontal Cylinder (Open) |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 6UH 10A 6.5 MOHM TH |
| Series | WE-RCIT |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Unshielded |
| Self Resonant Frequency | 80MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Radial |
