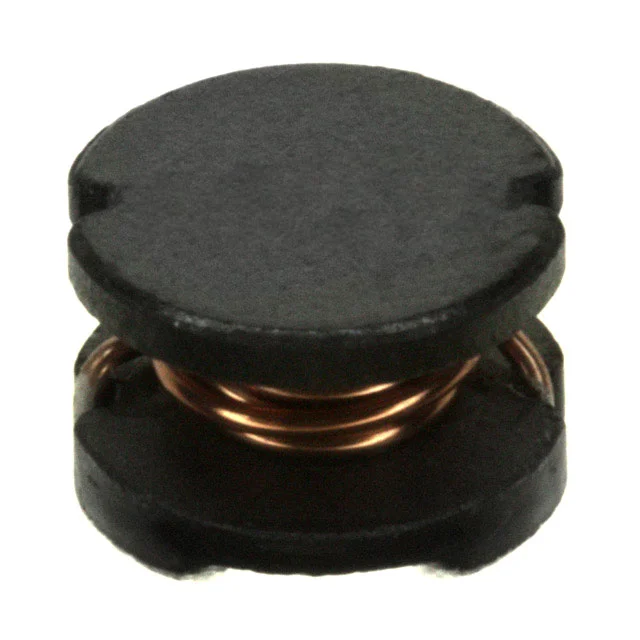

Description
FIXED IND 2.2UH 4.6A 41 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 784774022.
784774022 has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
784774022 is rated for 4.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
784774022 lists a DC resistance of 41mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
784774022 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 784774022 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 4.6 A |
| DC Resistance (DCR) | 41mOhm Max |
| Saturation Current | 8.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2UH 4.6A 41 MOHM SMD |
| Series | WE-PD2A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Self Resonant Frequency | 54MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5848 |
| Height - Seated (Max) | 0.191" (4.85mm) |
