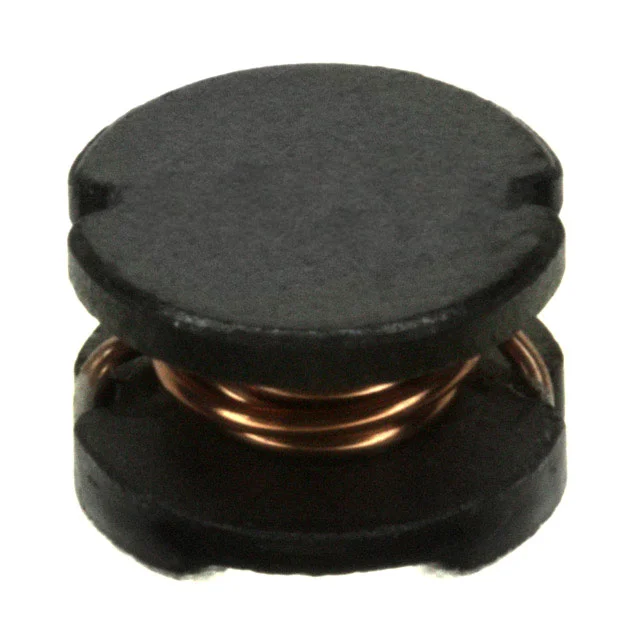

FIXED IND 150UH 460MA 1.1 OHM
| Inductance | 150 µH |
| Tolerance | ±20% |
| Current Rating | 460 mA |
| DC Resistance (DCR) | 1.1Ohm Max |
| saturationCurrent | 540mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.205" W (5.80mm x 5.20mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 150UH 460MA 1.1 OHM |
| Series | WE-PD2A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 6MHz |
| ratings | AEC-Q200 |
| testFrequency | 10 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 5848 |
| heightMax | 0.191" (4.85mm) |
| features | - |
