Description

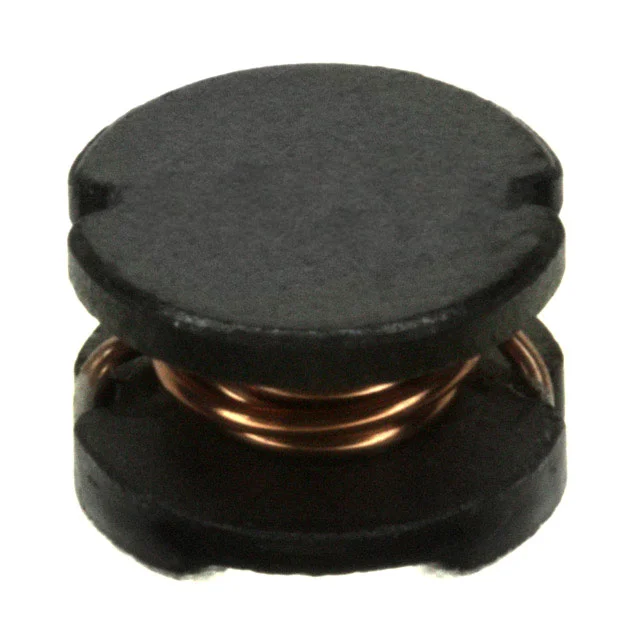

FIXED IND 10UH 2.98A 60 MOHM SMD
Specifications
Inductance
10 µH
Current Rating
2.98 A
DC Resistance (DCR)
60mOhm Max
Dimensions
0.394" L x 0.354" W (10.00mm x 9.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/13/2026| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 2.98 A |
| DC Resistance (DCR) | 60mOhm Max |
| saturationCurrent | 3.24A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.354" W (10.00mm x 9.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 10UH 2.98A 60 MOHM SMD |
| Series | WE-PD2A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | 22MHz |
| ratings | AEC-Q200 |
| testFrequency | 10 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1054 |
| heightMax | 0.232" (5.90mm) |
| features | - |
