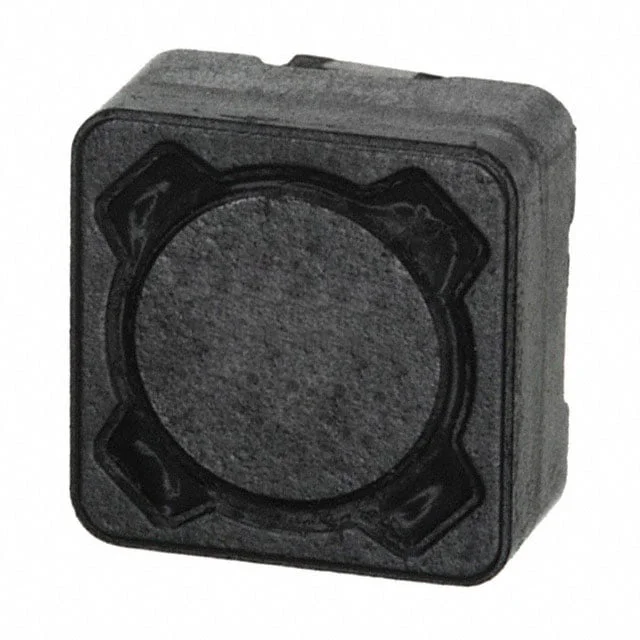

FIXED IND 220UH 500MA 1.13 OHM
| Inductance | 220 µH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 1.13Ohm Max |
| saturationCurrent | 550mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard, 4 Lead |
| Supplier | Würth Elektronik |
| Description | FIXED IND 220UH 500MA 1.13 OHM |
| Series | WE-PDA |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Nickel Zinc Ferrite (NiZn) |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 3.9MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 7345 |
| heightMax | 0.169" (4.30mm) |
| features | - |
