Description

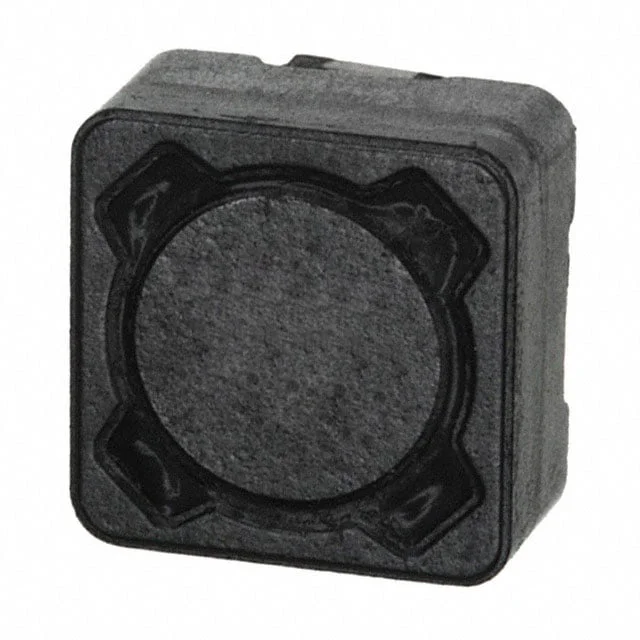

FIXED IND 8.2UH 2.2A 103 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 784778082.
784778082 has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
784778082 is rated for 2.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
784778082 lists a DC resistance of 103mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
784778082 uses a package or case of Nonstandard, 4 Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 784778082 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.2 A |
| DC Resistance (DCR) | 103mOhm Max |
| Saturation Current | 2.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard, 4 Lead |
| Package / Case | Nonstandard, 4 Lead |
| Supplier | Würth Elektronik |
| Description | FIXED IND 8.2UH 2.2A 103 MOHM |
| Series | WE-PDA |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Nickel Zinc Ferrite (NiZn) |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 36.9MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 7332 |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Features | - |
