Description

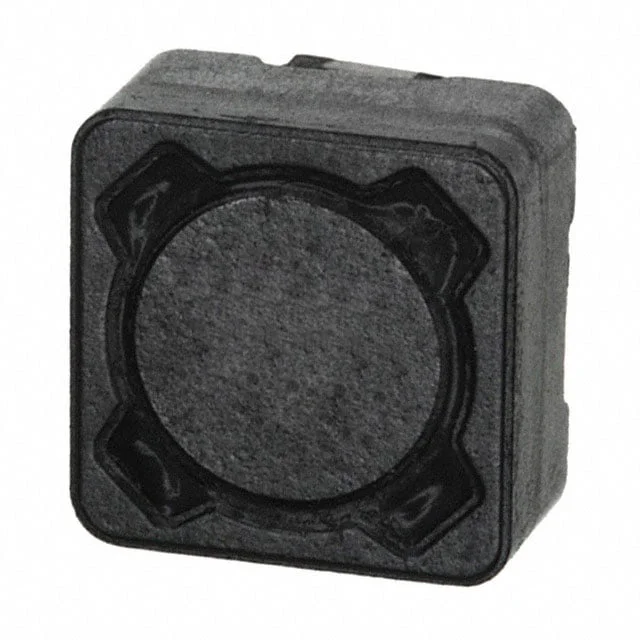

FIXED IND 47UH 1.1A 348 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 784778470.
784778470 has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
784778470 is rated for 1.1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
784778470 lists a DC resistance of 348mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
784778470 uses a package or case of Nonstandard, 4 Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 784778470 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 1.1 A |
| DC Resistance (DCR) | 348mOhm Max |
| Saturation Current | 1.05A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard, 4 Lead |
| Package / Case | Nonstandard, 4 Lead |
| Supplier | Würth Elektronik |
| Description | FIXED IND 47UH 1.1A 348 MOHM SMD |
| Series | WE-PDA |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Nickel Zinc Ferrite (NiZn) |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 13.5MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 7332 |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Features | - |
