Description

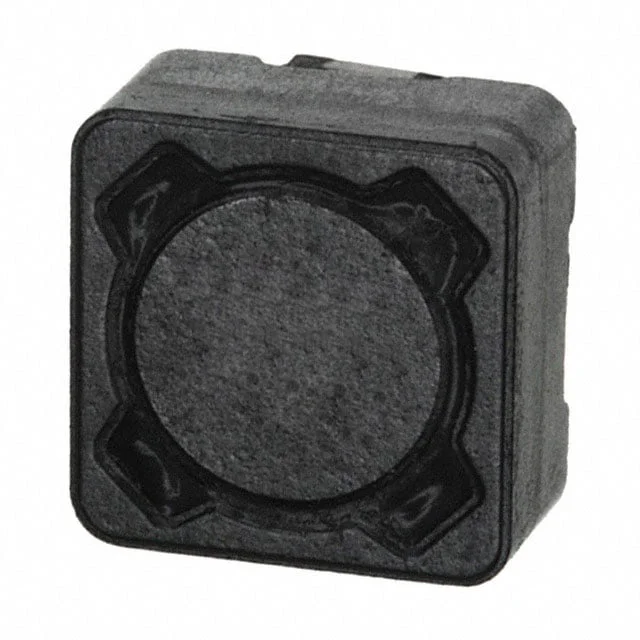

FIXED IND 470UH 300MA 3.3 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 784778471.
784778471 has an inductance value of 470 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
784778471 is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
784778471 lists a DC resistance of 3.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
784778471 uses a package or case of Nonstandard, 4 Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 784778471 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 3.3Ohm Max |
| Saturation Current | 350mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Case / Size | Nonstandard, 4 Lead |
| Package / Case | Nonstandard, 4 Lead |
| Supplier | Würth Elektronik |
| Description | FIXED IND 470UH 300MA 3.3 OHM |
| Series | WE-PDA |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Nickel Zinc Ferrite (NiZn) |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | 1.2MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 7332 |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Features | - |
