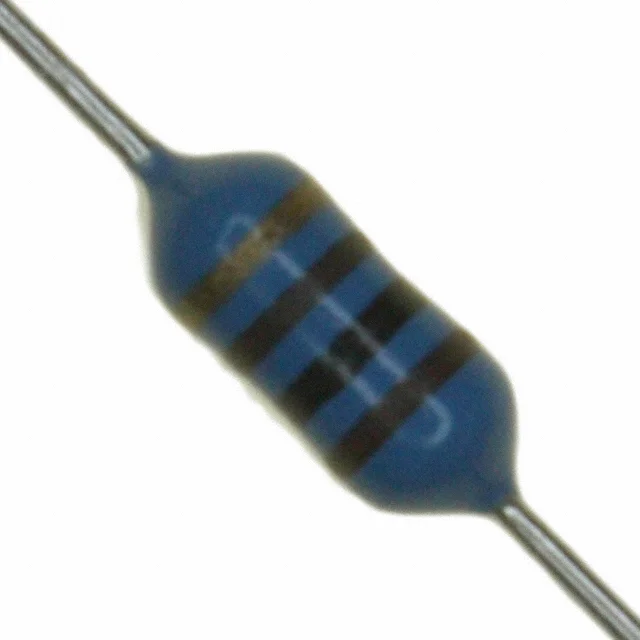

Description
FIXED IND 100UH 125MA 3.5 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 78F101J.
78F101J has an inductance value of 100 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
78F101J is rated for 125 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
78F101J lists a DC resistance of 3.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
78F101J uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 78F101J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 100 µH |
| Tolerance | ±5% |
| Current Rating | 125 mA |
| DC Resistance (DCR) | 3.5Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100UH 125MA 3.5 OHM TH |
| Series | 78F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 60 @ 2.5MHz |
| Self Resonant Frequency | 5.5MHz |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Through Hole |
