Description

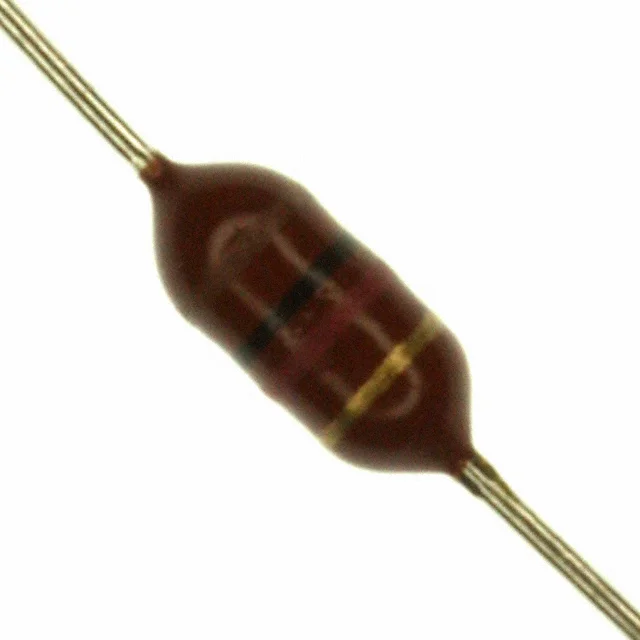

FIXED IND 1MH 41MA 26 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 78F102J.
78F102J has an inductance value of 1 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
78F102J is rated for 41 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
78F102J lists a DC resistance of 26Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
78F102J uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 78F102J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 mH |
| Tolerance | ±5% |
| Current Rating | 41 mA |
| DC Resistance (DCR) | 26Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1MH 41MA 26 OHM TH |
| Series | 78F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 60 @ 790kHz |
| Self Resonant Frequency | 1.2MHz |
| Inductance Test Frequency | 790 kHz |
| Mounting Type | Through Hole |
