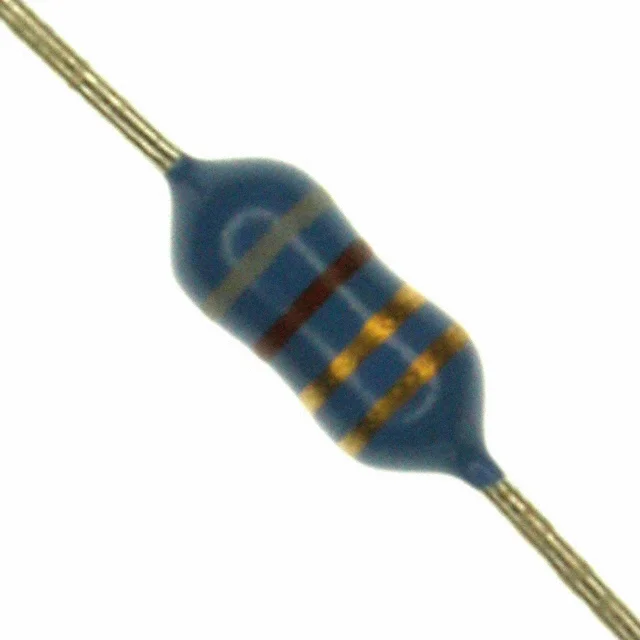

Description
FIXED IND 8.2UH 155MA 550 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 78F8R2J.
78F8R2J has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
78F8R2J is rated for 155 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
78F8R2J lists a DC resistance of 550mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
78F8R2J uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 78F8R2J to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±5% |
| Current Rating | 155 mA |
| DC Resistance (DCR) | 550mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2UH 155MA 550 MOHM |
| Series | 78F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 40 @ 7.9MHz |
| Self Resonant Frequency | 28MHz |
| Ratings | - |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Height - Seated (Max) | - |
| Features | - |
