Description

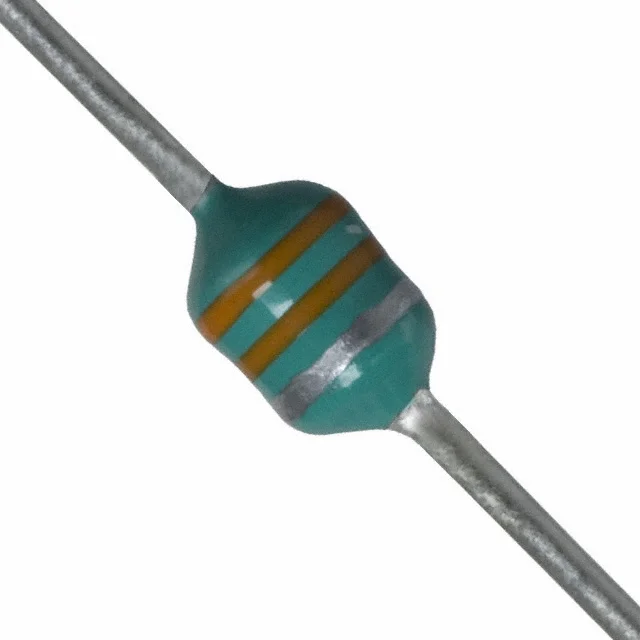

FIXED IND 330NH 370MA 480 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 79FR33M.
79FR33M has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
79FR33M is rated for 370 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
79FR33M lists a DC resistance of 480mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
79FR33M uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 79FR33M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 370 mA |
| DC Resistance (DCR) | 480mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330NH 370MA 480 MOHM |
| Series | 79F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 35 @ 25MHz |
| Self Resonant Frequency | 150MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Through Hole |
