Description

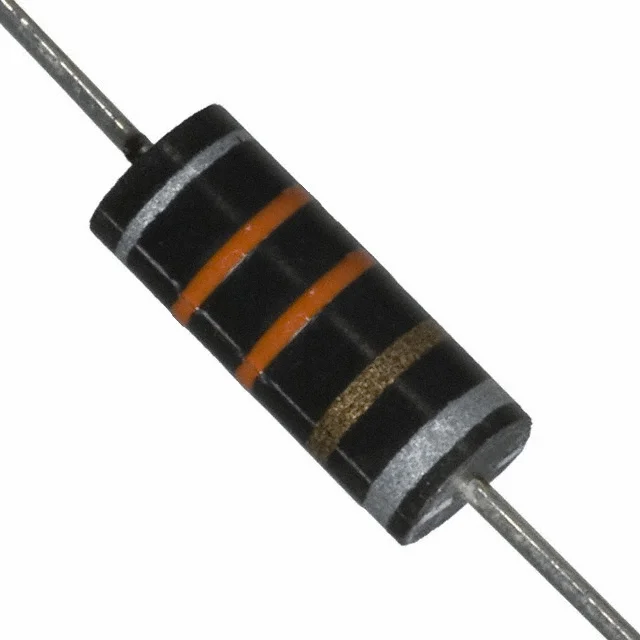

FIXED IND 330NH 780MA 130 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 9250A-331-RC.
9250A-331-RC has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
9250A-331-RC is rated for 780 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
9250A-331-RC lists a DC resistance of 130mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
9250A-331-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 9250A-331-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±10% |
| Current Rating | 780 mA |
| DC Resistance (DCR) | 130mOhm Max |
| Saturation Current | 780mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330NH 780MA 130 MOHM |
| Series | 9250A |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 46 @ 25MHz |
| Self Resonant Frequency | 250MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Through Hole |
