Description

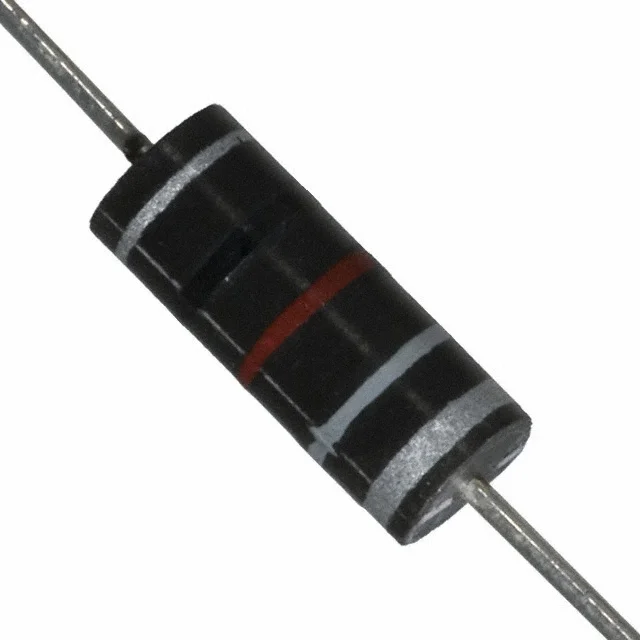

FIXED IND 82UH 180MA 2.44 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 9250A-823-RC.
9250A-823-RC has an inductance value of 82 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
9250A-823-RC is rated for 180 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
9250A-823-RC lists a DC resistance of 2.44Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
9250A-823-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 9250A-823-RC to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating | 180 mA |
| DC Resistance (DCR) | 2.44Ohm Max |
| Saturation Current | 140mA |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 82UH 180MA 2.44 OHM TH |
| Series | 9250A |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 50 @ 2.5MHz |
| Self Resonant Frequency | 10.5MHz |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Through Hole |
