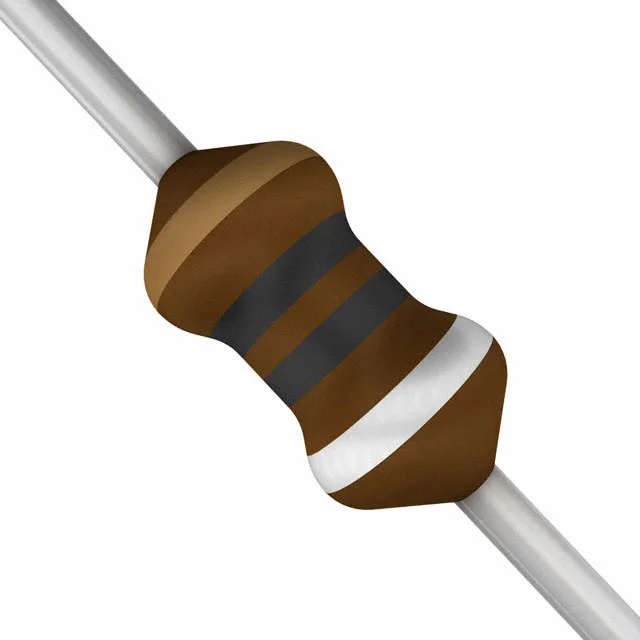

B82141A1103K000
TDK
- Inductance
- 10 µH
- Current
- 410 mA
- DCR
- 600mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
Series: SBC
Browse series tables and compare the available specifications.
SBC
101 datasheets found from TDK

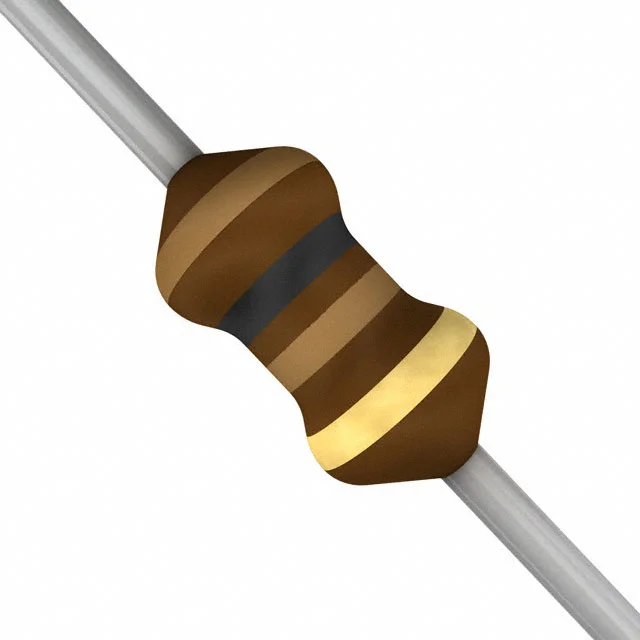

B82141A1104J000
TDK
- Inductance
- 100 µH
- Current
- 170 mA
- DCR
- 3.5Ohm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

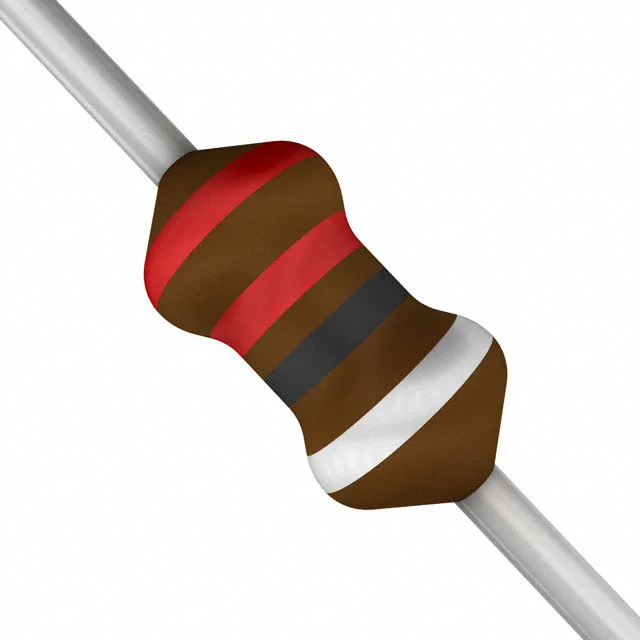

B82141A1223K000
TDK
- Inductance
- 22 µH
- Current
- 335 mA
- DCR
- 900mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

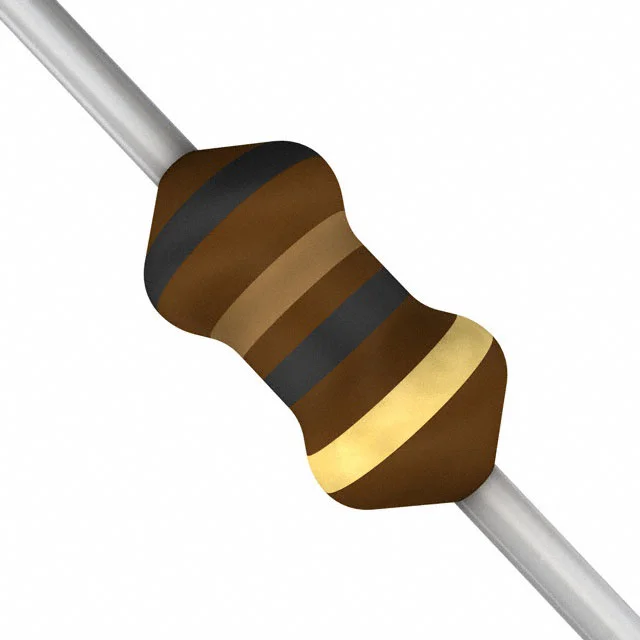

B82141A1105J000
TDK
- Inductance
- 1 mH
- Current
- 55 mA
- DCR
- 33Ohm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

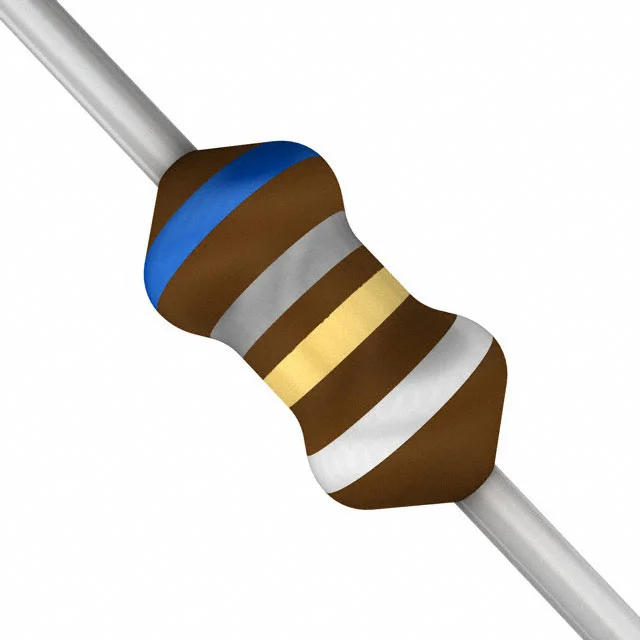

B82141A1682K000
TDK
- Inductance
- 6.8 µH
- Current
- 480 mA
- DCR
- 430mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

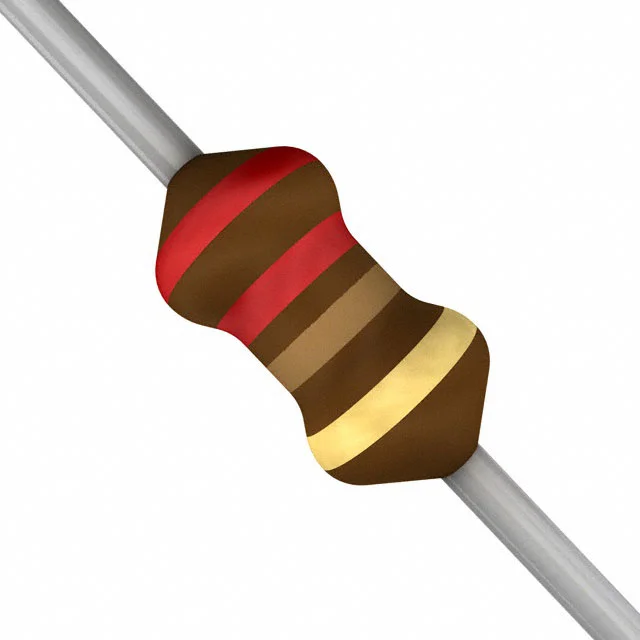

B82141A1224J000
TDK
- Inductance
- 220 µH
- Current
- 130 mA
- DCR
- 5.8Ohm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

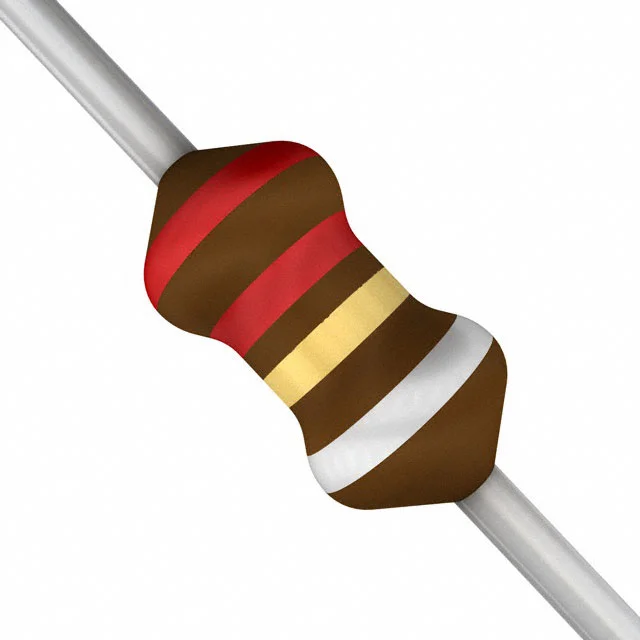

B82141A1222K000
TDK
- Inductance
- 2.2 µH
- Current
- 630 mA
- DCR
- 250mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

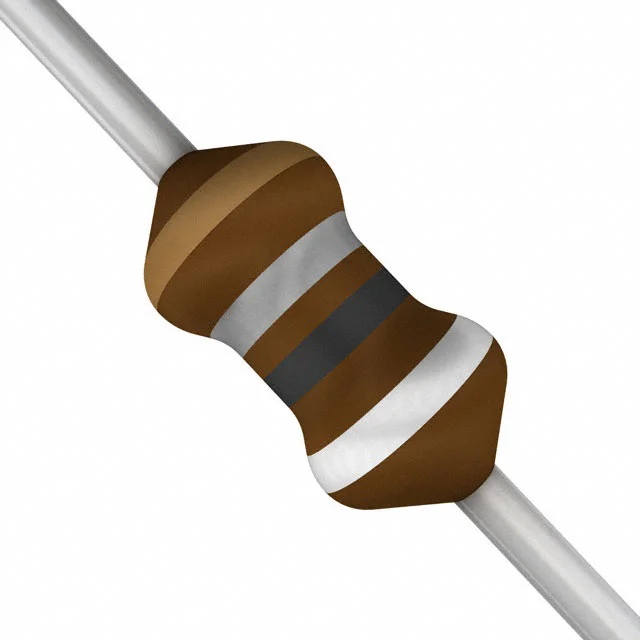

B82141A1183K000
TDK
- Inductance
- 18 µH
- Current
- 350 mA
- DCR
- 810mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

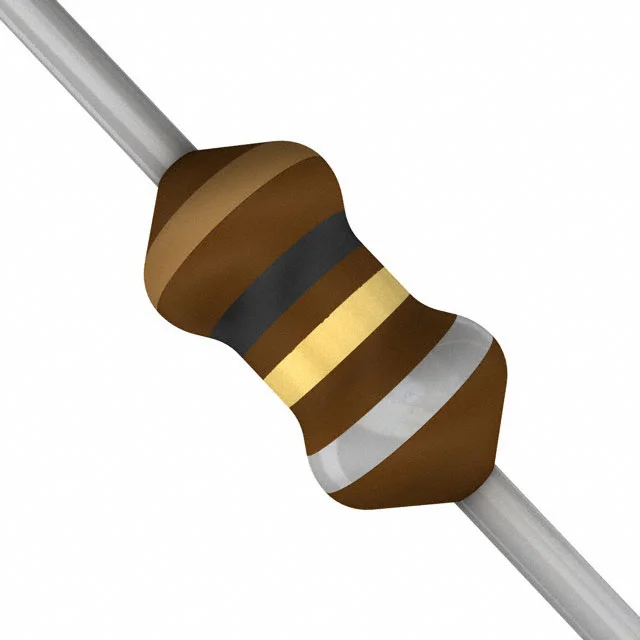

B82141A1102K000
TDK
- Inductance
- 1 µH
- Current
- 725 mA
- DCR
- 190mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

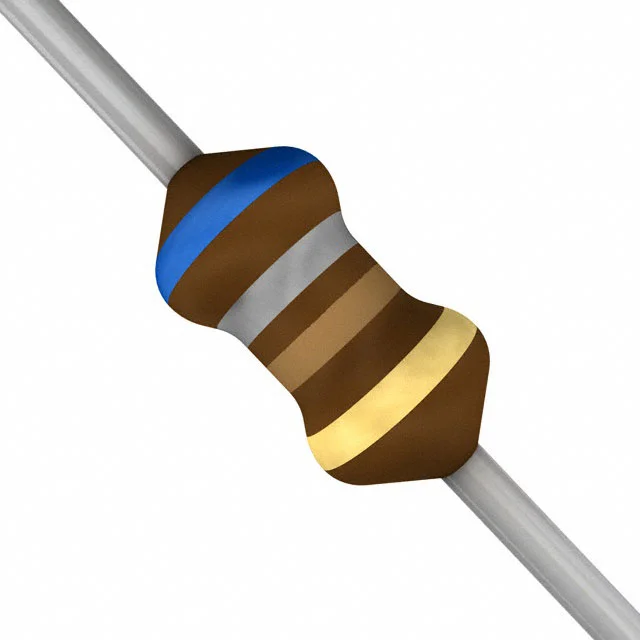

B82141A1684J000
TDK
- Inductance
- 680 µH
- Current
- 65 mA
- DCR
- 22Ohm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)
B82141A1392K009
TDK
- Inductance
- 3.9 µH
- Current
- 560 mA
- DCR
- 320mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

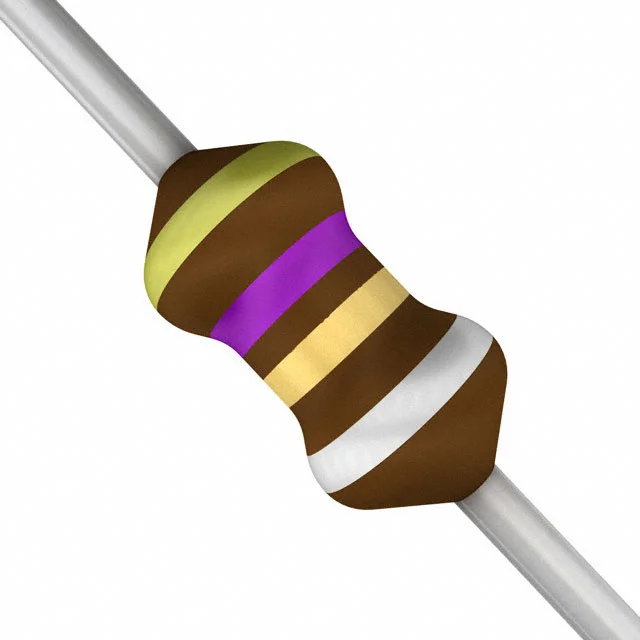

B82141A1472K009
TDK
- Inductance
- 4.7 µH
- Current
- 530 mA
- DCR
- 360mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

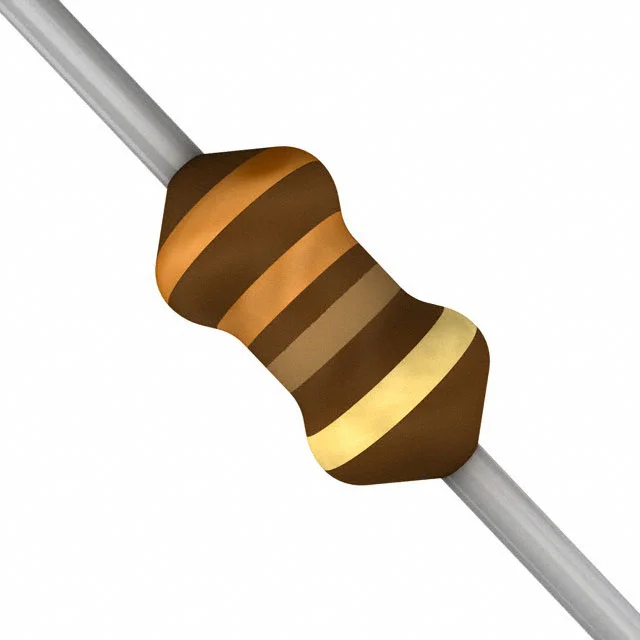

B82141A1334J000
TDK
- Inductance
- 330 µH
- Current
- 105 mA
- DCR
- 9.1Ohm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

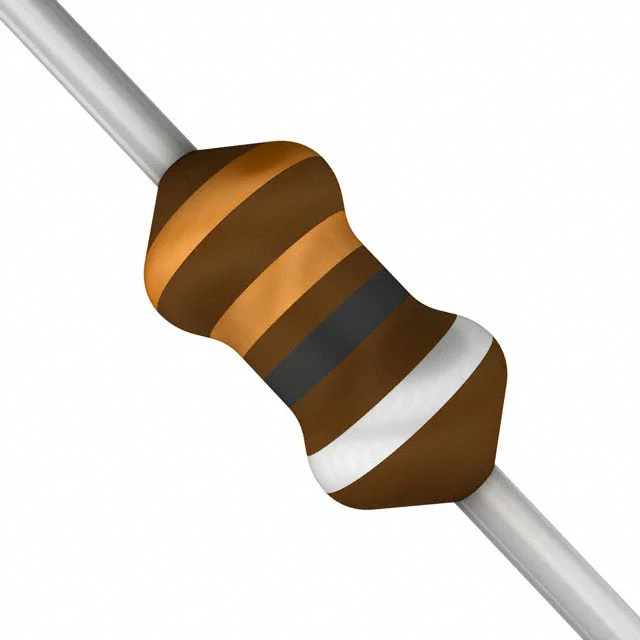

B82141A1333K000
TDK
- Inductance
- 33 µH
- Current
- 300 mA
- DCR
- 1.12Ohm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

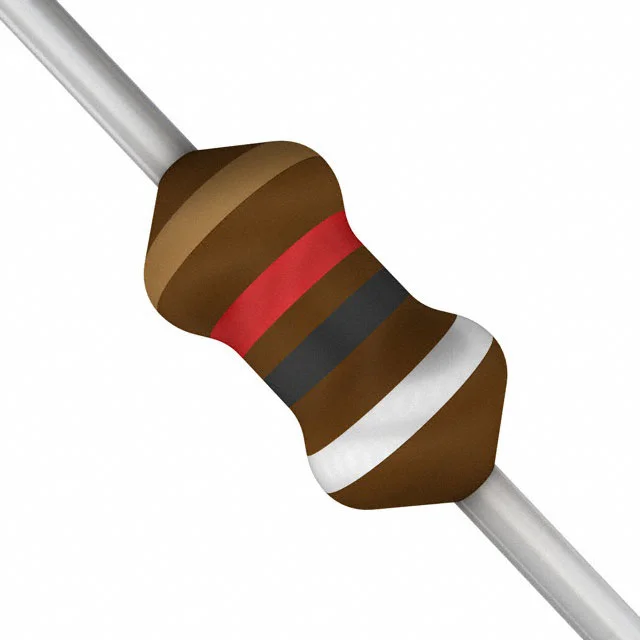

B82141A1123K000
TDK
- Inductance
- 12 µH
- Current
- 385 mA
- DCR
- 670mOhm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)

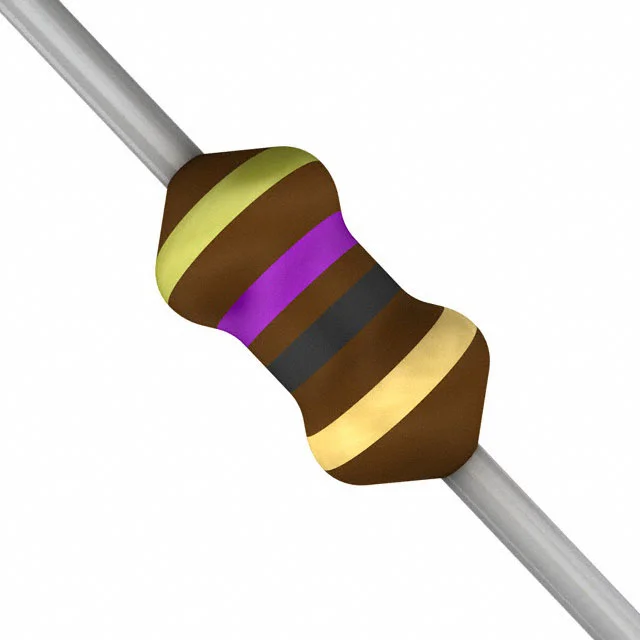

B82141A1473J000
TDK
- Inductance
- 47 µH
- Current
- 200 mA
- DCR
- 2.4Ohm Max
- Size
- 0.118" Dia x 0.268" L (3.00mm x 6.80mm)
B82141B1102K9
TDK
- Inductance
- 1 µH
- Current
- 725 mA
- DCR
- 190mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1103K9
TDK
- Inductance
- 10 µH
- Current
- 410 mA
- DCR
- 600mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1122K9
TDK
- Inductance
- 1.2 µH
- Current
- 700 mA
- DCR
- 200mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1123K9
TDK
- Inductance
- 12 µH
- Current
- 385 mA
- DCR
- 670mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1152K9
TDK
- Inductance
- 1.5 µH
- Current
- 670 mA
- DCR
- 220mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1153K9
TDK
- Inductance
- 15 µH
- Current
- 365 mA
- DCR
- 740mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1182K9
TDK
- Inductance
- 1.8 µH
- Current
- 660 mA
- DCR
- 230mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1183K9
TDK
- Inductance
- 1.8 µH
- Current
- 660 mA
- DCR
- 230mOhm Max
- Size
- 0.118" Dia (3.00mm)
B82141B1222K9
TDK
- Inductance
- 2.2 µH
- Current
- 630 mA
- DCR
- 250mOhm Max
- Size
- 0.118" Dia (3.00mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
| 10 µH | 410 mA | 600mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 100 µH | 170 mA | 3.5Ohm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 22 µH | 335 mA | 900mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 1 mH | 55 mA | 33Ohm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 6.8 µH | 480 mA | 430mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 220 µH | 130 mA | 5.8Ohm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 2.2 µH | 630 mA | 250mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 18 µH | 350 mA | 810mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 1 µH | 725 mA | 190mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 680 µH | 65 mA | 22Ohm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 3.9 µH | 560 mA | 320mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 4.7 µH | 530 mA | 360mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 330 µH | 105 mA | 9.1Ohm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 33 µH | 300 mA | 1.12Ohm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 12 µH | 385 mA | 670mOhm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 47 µH | 200 mA | 2.4Ohm Max | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | Axial | ||
| 1 µH | 725 mA | 190mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 10 µH | 410 mA | 600mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 1.2 µH | 700 mA | 200mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 12 µH | 385 mA | 670mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 1.5 µH | 670 mA | 220mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 15 µH | 365 mA | 740mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 1.8 µH | 660 mA | 230mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 1.8 µH | 660 mA | 230mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder | ||
| 2.2 µH | 630 mA | 250mOhm Max | 0.118" Dia (3.00mm) | Radial, Vertical Cylinder |
