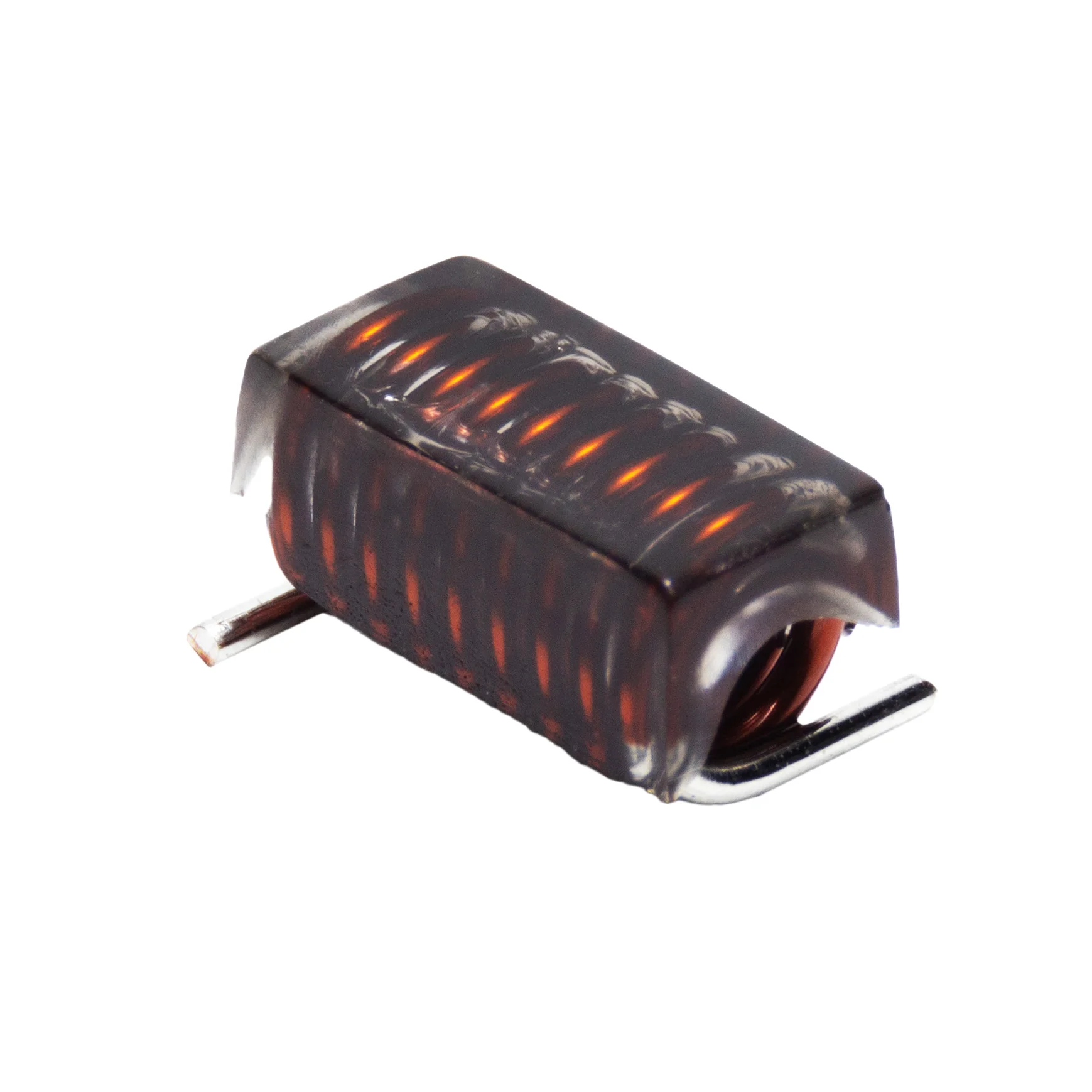

FIXED IND 169NH 3A 25 MOHM SMD
| Inductance | 169 nH |
| Tolerance | ±5% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 25mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -25°C ~ 125°C |
| Dimensions | 0.415" L x 0.250" W (10.55mm x 6.35mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 169NH 3A 25 MOHM SMD |
| Series | AC1060R |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Air |
| shielding | Unshielded |
| qFactor | 95 @ 50MHz |
| selfResonantFreq | 875MHz |
| ratings | - |
| testFrequency | 50 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.232" (5.90mm) |
| features | - |
